Driver's Door Control Module -J386-

Control modules in interior

Driver's Door Control Module -J386-




Component Location:


On front door inner part on driver side -Arrow-.

Note::
• The illustration shows the driver side. The front passenger side is identical.

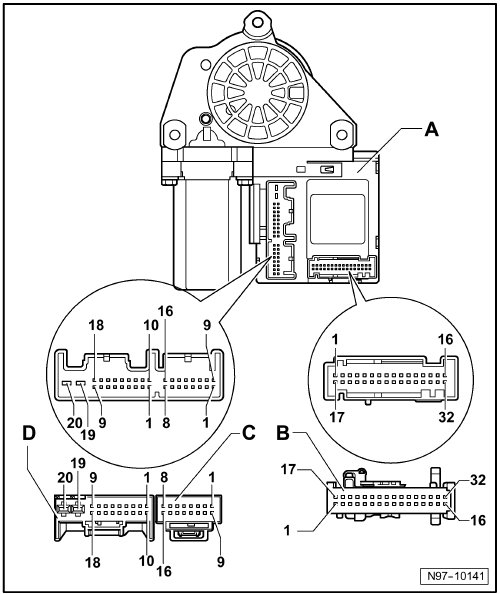

Pin Arrangements:







A - Front Passenger's Door Control Module -J387- , Driver's Door Control Module -J386-
Connector:

B - 32-pin connector -T32a- , -32-pin connector -T32b-

C - 16-pin connector -T16a- -, -16-pin connector -T16b-

D - 20-pin connector -T20g- , -20-pin connector -T20h-
