Information Bus: Locations

Control modules in interior

Data Bus On Board Diagnostic Interface -J533-









Component Location:


Left-hand drive models:

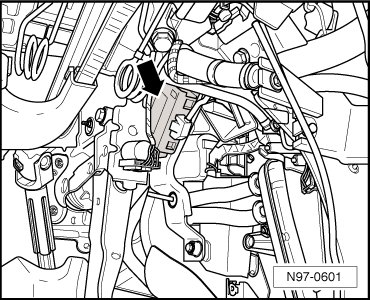

In driver footwell near the pedal assembly -Arrow-
Right-hand drive models:
In the center console, below Radio/Navigation System

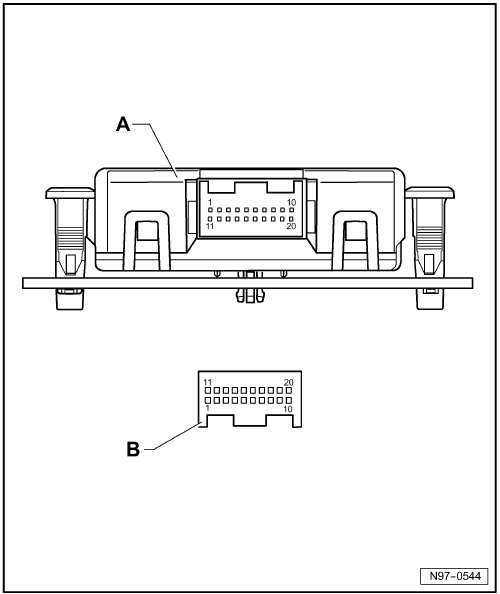

Pin Arrangements:







A - Data Bus On Board Diagnostic Interface -J533-
Connector:

B - 20-pin connector -T20e-
