Rear Axle Toe, Adjusting

Rear Axle Toe, Adjusting

Special tools, testers and auxiliary items required

• Torque Wrench (40-200 Nm) (V.A.G 1332)

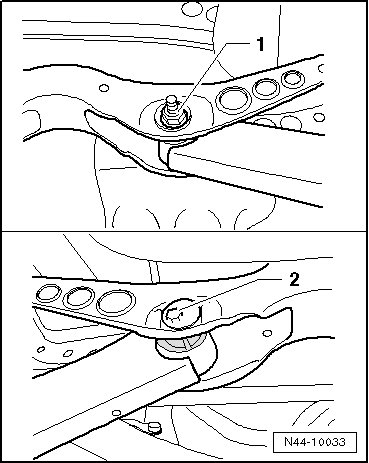

- Loosen the nut - 1 -.






- Turn the eccentric bolt - 2 - until the specified value has been reached.

- Now, tighten the nut again.

Tightening Specification
