A/C Control Module -J301-







Control modules in interior

A/C Control Module -J301-

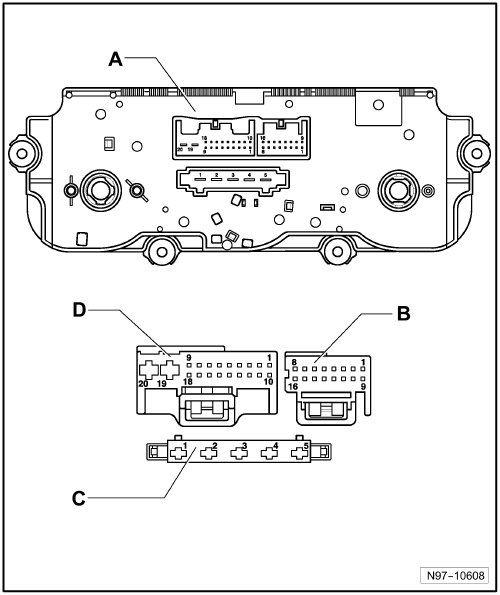

Pin Arrangements:







A - A/C Control Module -J301-
Connector:

B - 16-pin connector -T16j-

C - 5-pin connector -T5r-

D - 20-pin connector -T20b-
