Fog Lamp Alignment

Prepare an alignment screen. A properly aligned fog lamp will project a pattern on the alignment screen 100 mm (4 in.) below the fog lamp center line and straight ahead. Refer to Fog Lamp Unit Alignment information below. To improve visual interpretation of the fog lamp pattern on the alignment screen, the headlamps should be in the "off" position.

The fog lamps are adjusted by a adjustment screw at the top of the lamp.

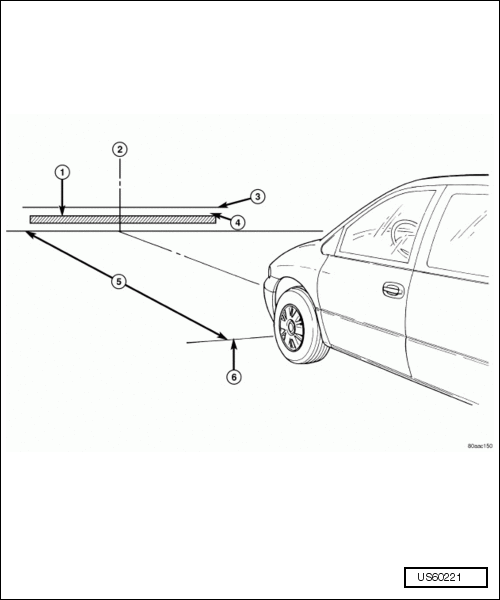

Fig 1: Identifying Fog Lamp Alignment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
