Powertrain Mounting

WARNING: This page is about a different variant/trim than selected.

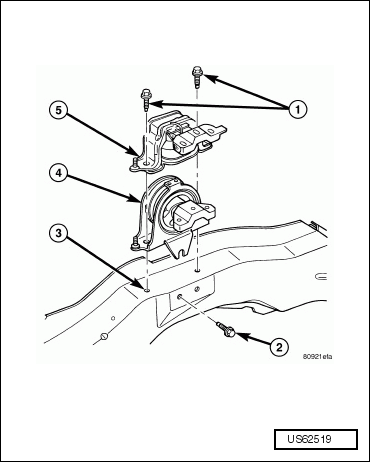

Fig 1: Identifying Powertrain Mounts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolts
Bolt
Frame rail
Right powertrain mount
- Does not apply to the 3.8L engine.
Right powertrain mount
- Hydro - type mount.

The powertrain mounting system consists of four mounts. The right and left side mounts support the powertrain, and the front and rear mounts control the powertrain torque. The right side mount (5) is a hydro-type mount, all others are a molded rubber material.
