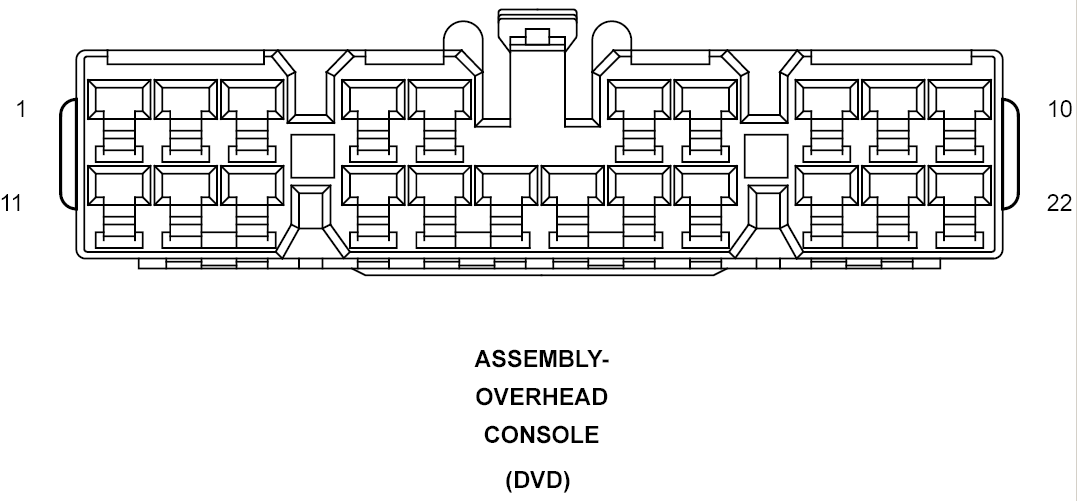

Overhead Console DVD Assembly Connector End View

ASSEMBLY-OVERHEAD CONSOLE - 22 WAY (DVD)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	-	-
3	X18 22GY/YL	SDARS RIGHT AUDIO SIGNAL
4	X19 22GY/OR	SDARS LEFT AUDIO SIGNAL
5	X510 22DG/LB	AUX AUDIO RIGHT SIGNAL NO. 1
6	X511 22Y/LG	AUX AUDIO LEFT SIGNAL NO. 1
7	X512 22GY/OR	AUX VIDEO SIGNAL NO. 1
8	X513 22GY/LB	AUX VIDEO COMMON NO. 1
9	X514 22	AUX AUDIO SHIELD NO. 1
10	X519 22DG/VT	AUX AUDIO COMMON NO. 2
11	X521 22GY/LB	AUX AUDIO LEFT SIGNAL NO. 2
12	X522 22GY/DB	AUX AUDIO RIGHT SIGNAL NO. 2
13	X531 22GY/LB	AUX VIDEO SIGNAL NO. 2
14	X532 22GY/OR	AUX VIDEO COMMON NO. 2
15	X533 22	AUX AUDIO SHIELD NO. 2
16	X910 22GY/DG	AUX AUDIO COMMON NO. 1
17	-	-
18	X918 22GY	SDARS AUDIO SIGNAL COMMON
19	X973 22GY/LB	SDARS VIDEO SIGNAL COMMON
20	X974 22GY/OR	SDARS VIDEO SIGNAL
21	X975 22	SDARS VIDEO SHIELD
22	-	-
