Ignition Capacitor: Installing

WARNING: This page is about a different variant/trim than selected.

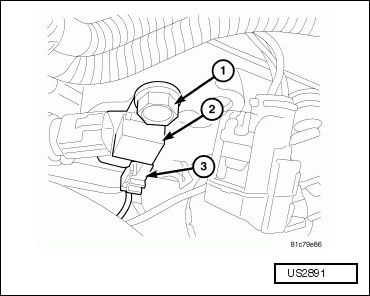

Fig 1: Identifying Wiring Harness Electrical Connector, Capacitor And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the ignition capacitor (2) and bolt (1). Tighten the bolt to 28 Nm (21 ft lbs).

-- Connect the wiring harness electrical connector (3) to the capacitor (2).

-- Connect the negative battery cable. Refer to BATTERY .
