Engine Identification

WARNING: This page is about a different variant/trim than selected.

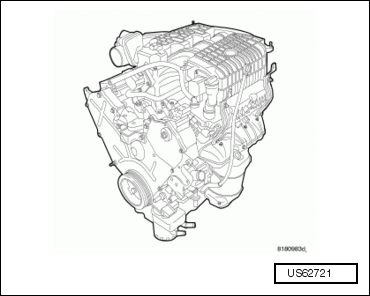

Fig 1: 4.0 Liter 60 Degree V6 Engine

Courtesy of AUDI OF AMERICA, LLC

The 4.0 liter 60 degree V6 engine is a single overhead camshaft design with hydraulic lifters and four valves per cylinder. The engine does not have provisions for a free wheeling valve train.

ENGINE IDENTIFICATION

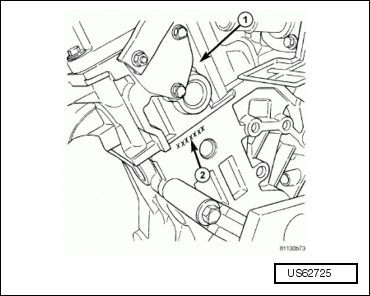

Fig 2: Engine Identification Number & Cylinder Head

Courtesy of AUDI OF AMERICA, LLC

The engine identification number (2) is located on the rear of the engine block just below the left cylinder head (1).
