Ignition Capacitor: Installing
WARNING: This page is about a different car, the 2014 Volkswagen Routan, 2013 Volkswagen Routan, 2012 Volkswagen Routan, and 2011 Volkswagen Routan. However, it is still accessible from the selected car via links, so may be relevant.

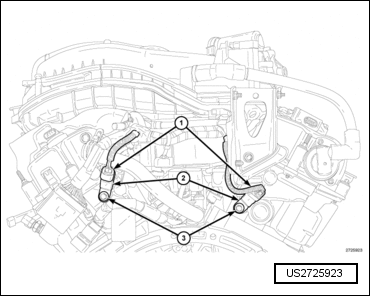

-- Install the ignition coil capacitor (2) and bolt (3). Tighten the bolt to 10 Nm (89 in. lbs.).
-- Connect the electrical connector (1).
-- Connect the negative battery cable. Refer to Battery, Disconnecting And Connecting .
