Spark Plug Firing Order

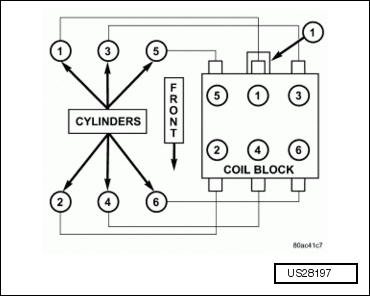

Fig 1: Identifying Spark Plug Firing Order
GWWUS28197Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The firing order is 1 - 2 - 3 - 4 - 5 - 6.
