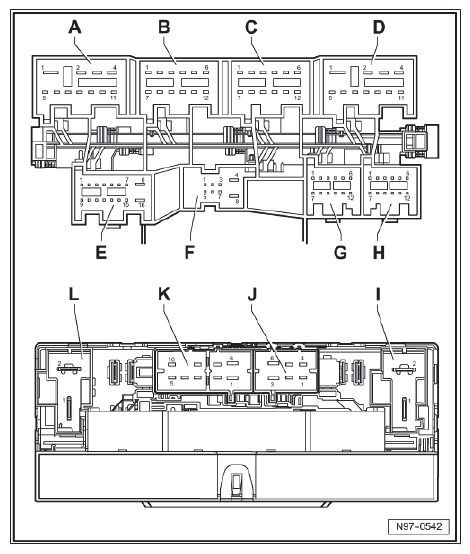

Vehicle Electrical Control Module System (C = 12-Pin) Connector End View (J519)
| 1 | Left Brake Lamp |
| 2 | Driver's Heated Seat Control Module, Front Passenger's Heated Seat Control Module |
| 3 | Right Rear Fog Lamp |
| 4 | Right Brake/Taillamp |
| 5 | Not Used |
| 6 | Not Used |
| 7 | Left Front Entry Light, Right Front Entry Light |
| 8 | Not Used |
| 9 | Right Tail Lamp |
| 10 | Right Rear Turn Signal Lamp |
| 11 | Front Interior Light |
| 12 | Terminal 58d |
