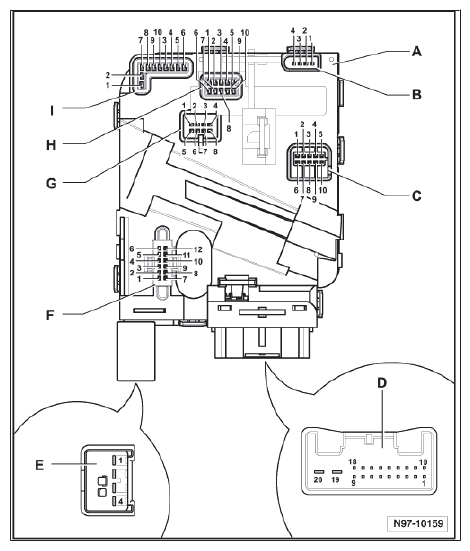

Steering Column Electronics Control Module (C = 10-Pin) Connector End View (J527)

Fig 1: Steering Column Electronics Control Module (C = 10-Pin) Connector End View (J527)

1	Power Supply CCS (terminal 15)
2	CCS OFF
3	Res (+), Set (-)
4	CCS ON/OFF
5	Ground CCS
6	Illumination CCS (terminal 58)
7	Flasher Switch
8	High Beam
9	Turn Signal
10	Ground Turn Signal
