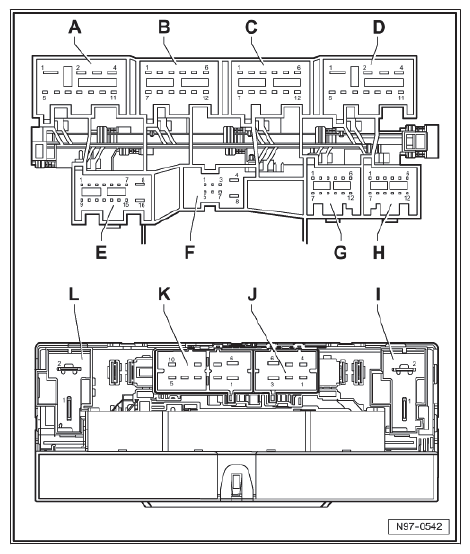

Vehicle Electrical Control Module System (E = 16-Pin) Connector End View (J519)
| 1 | Light Switch Terminal 58 |
| 2 | Brake Light Switch |
| 3 | Ground Coming Home Leaving Home |
| 4 | Terminal 30 Coming Home Leaving Home |
| 5 | Not used |
| 6 | Fog Lamp Switch |
| 7 | Ground (only manual transmission) Direct Shift Gearbox (DSG) Mechatronic (only direct shift gearbox) Multi-Function Transmission Range (TR) Switch (only automatic transmission) |
| 8 | Light Switch Terminal 56 |
| 9 | Not used |
| 10 | Not used |
| 11 | Not used |
| 12 | Signal Coming Home Leaving Home |
