Heating Unit Partition






Heating Unit Partition

Removing

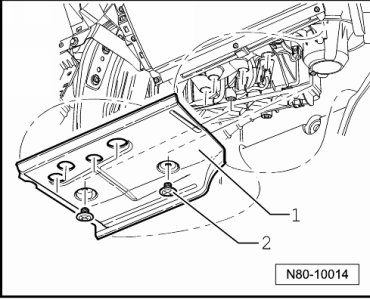

- Unscrew plastic screws - 2 - and remove partition - 1 -.

Installing

Install in reverse order of removal.
