Multimedia Control Unit

Radio, Multimedia, Navigation

Multimedia Control Unit

• Radio Removal Tool (T10057)

The release tool (VAS ) consists of identical individual parts. But for removal of the control unit, you need only 2 release tools instead of the 4.

Removing

Before starting repair work, perform the following:

- Switch off ignition, switch off all electrical consumers and remove ignition key.

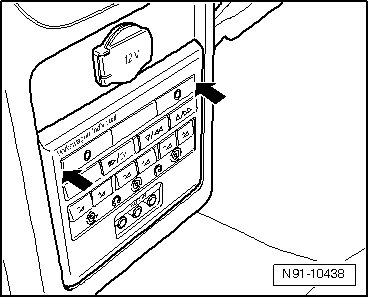

Release tool slits - arrows - in control unit.

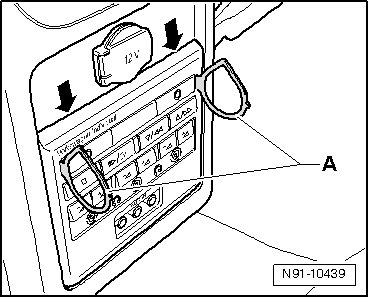

- Insert release tools - A - into control unit until they engage.





- Remove control unit by grasping upper edge of frame - arrows - and folding out control unit.

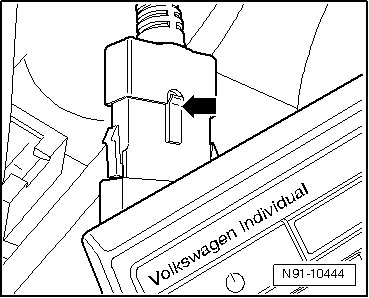

- Press on connector locking mechanism - arrow - and remove.





- Remove release tools.

Installing

- Connect harness connector.

- Insert control unit at bottom into frame.

- Press control unit into center console until it engages.

- Finally, check multimedia system for functionality.
