Keyless Entry Transmitter Battery: Service and Repair

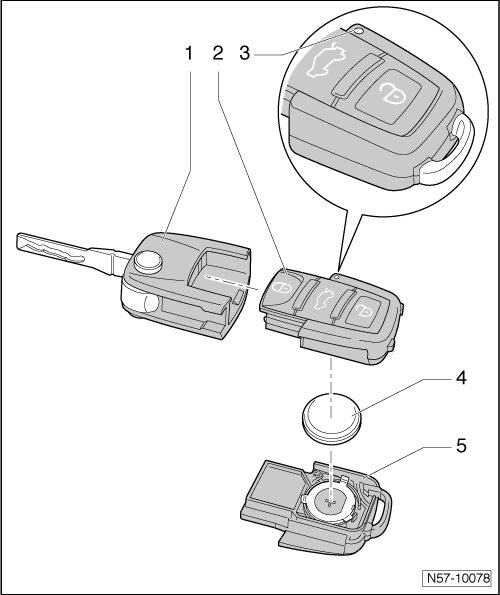

Battery for Folding Remote Control Key Assembly Overview





1 Key with variable code transponder

2 Radio frequency unit - upper part

3 LED

• This LED must blink when remote control is operated.

• If LED does not blink when remote control is operated, the battery is completely discharged and must be replaced.

4 Battery

• Removing and Installing battery => [ Battery for Folding Remote Control Key ] Service and Repair

5 Radio frequency unit - lower part
