Control Units

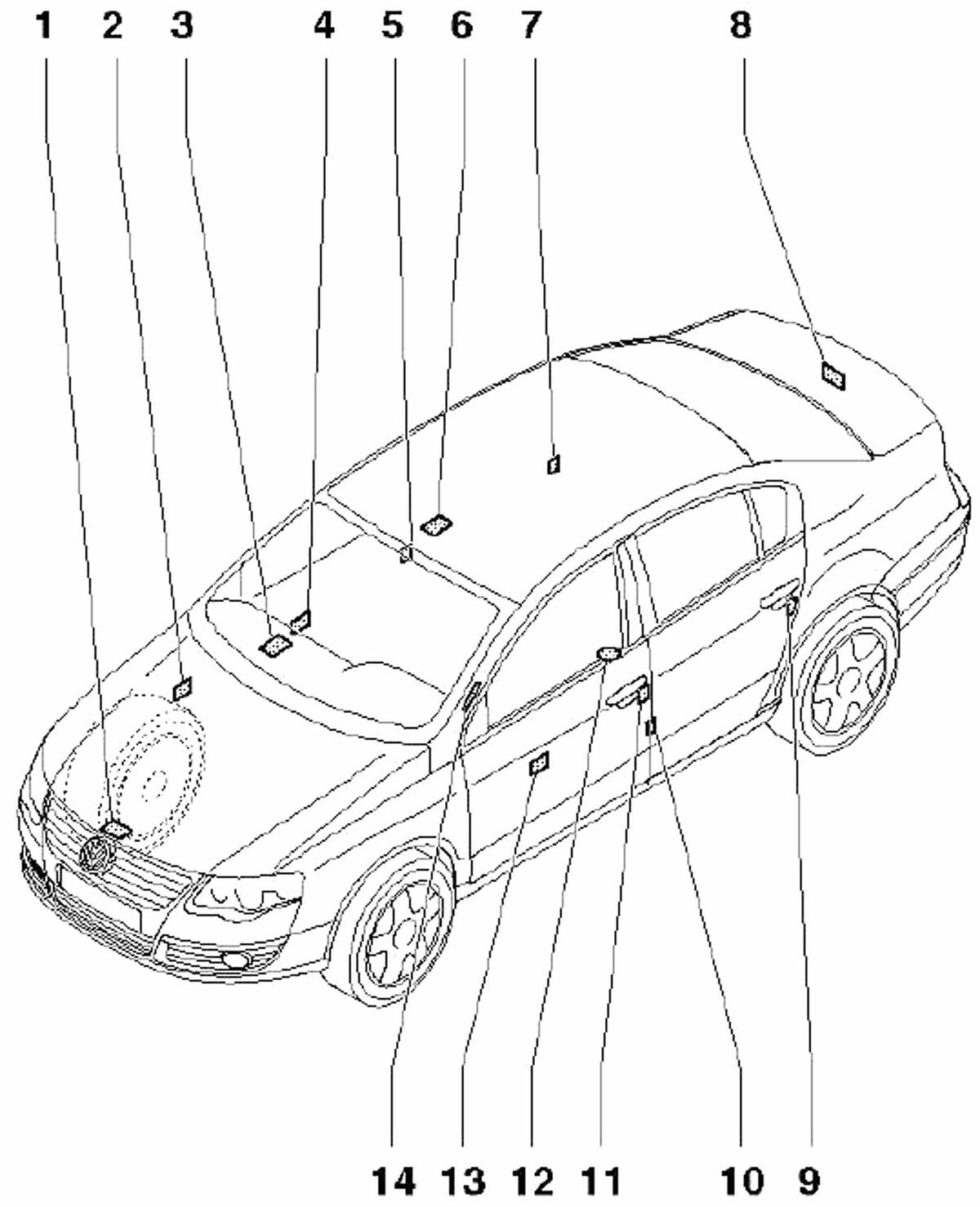

CONTROL UNITS LOCATION
| Component | Location |
|---|---|

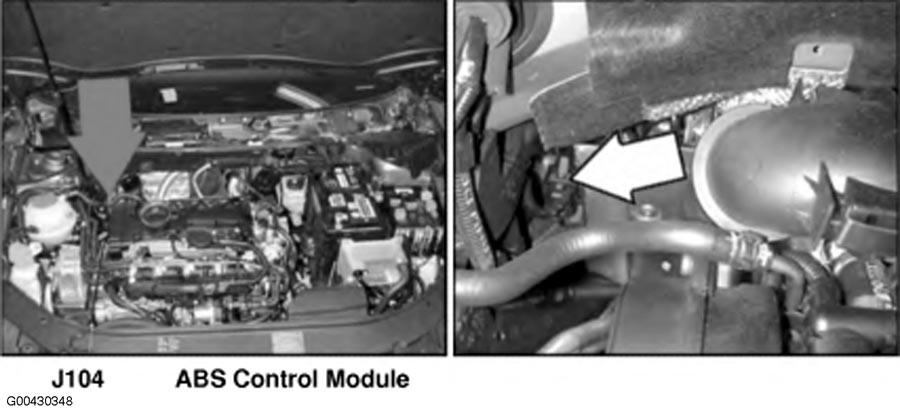

| ABS Control Module | Right rear of engine compartment. See Figure. |

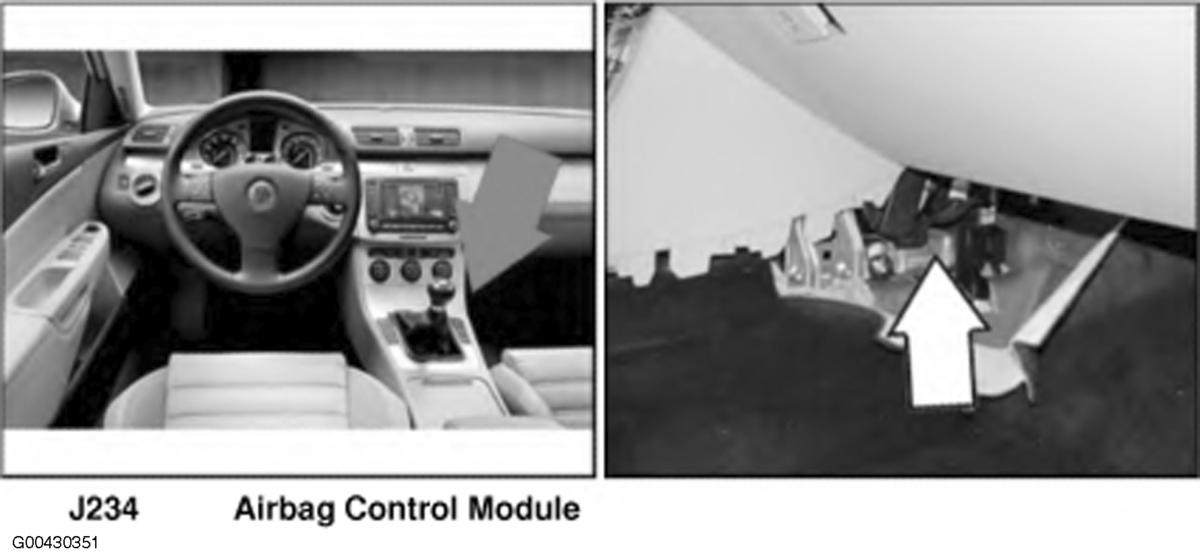

| Airbag Control Module | Mounted on floor in front of center console. See Figure. |

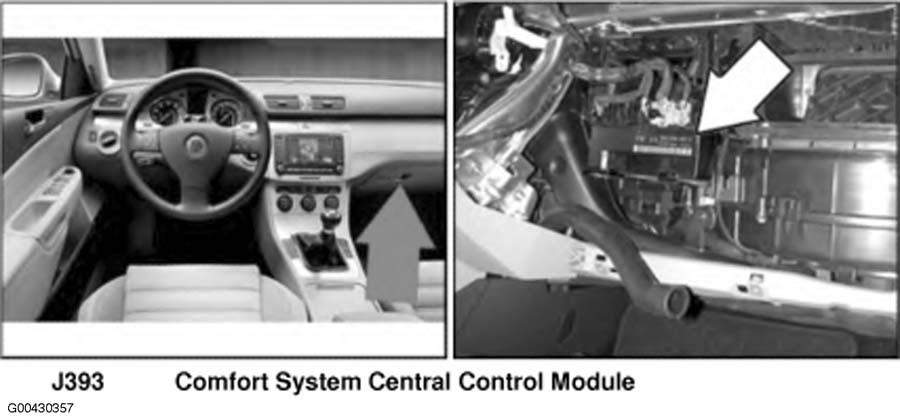

| Comfort System Central Control Module | Behind right side of dash. See Figure. |

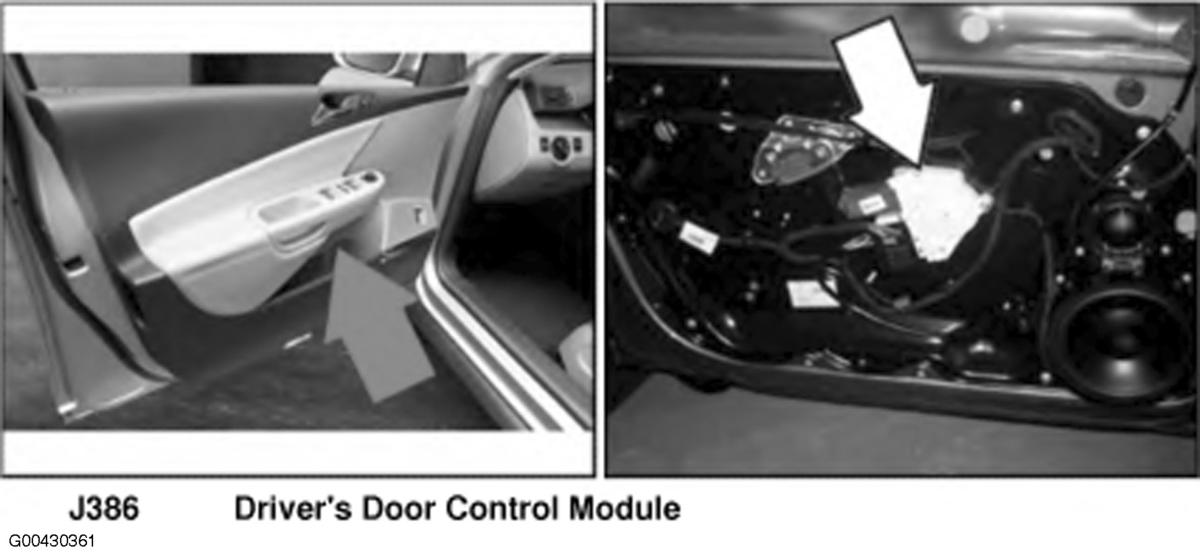

| Door Control Module (Driver's Side) | In driver's door. See Figure. |
| Door Control Module (Front Passenger's) (4) | In front passenger's door. See Figure. |

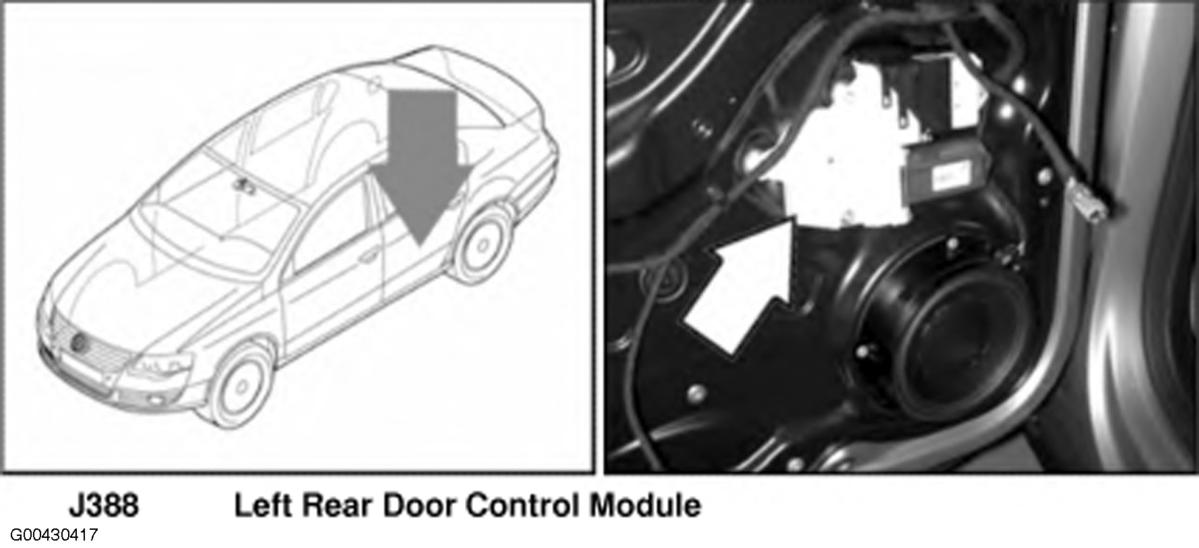

| Door Control Module (Left Rear) | In left rear door. See Figure. |

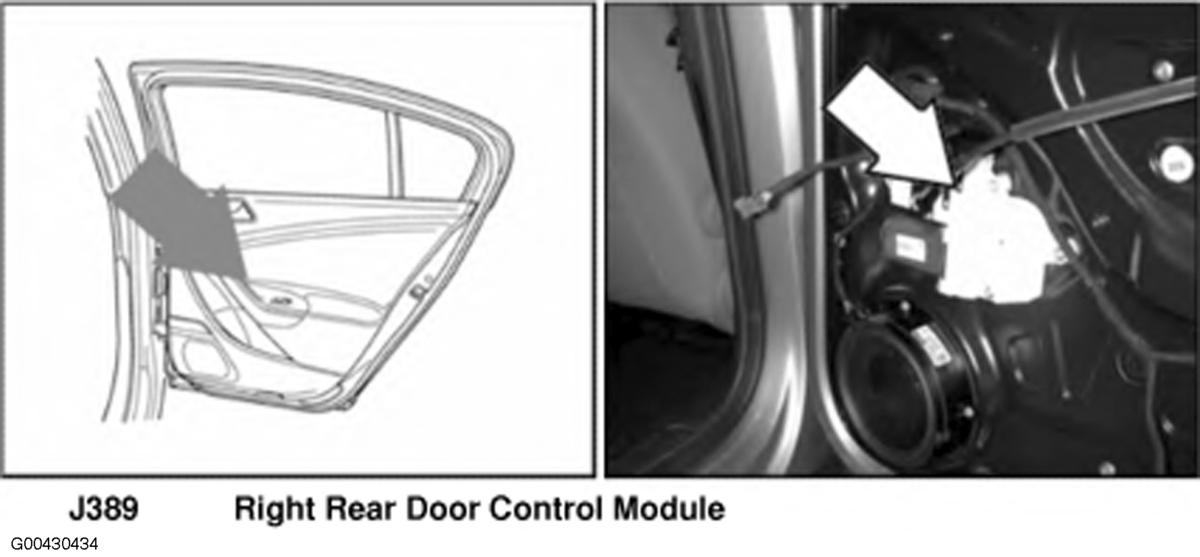

| Door Control Module (Right Rear) | In right rear door. See Figure. |

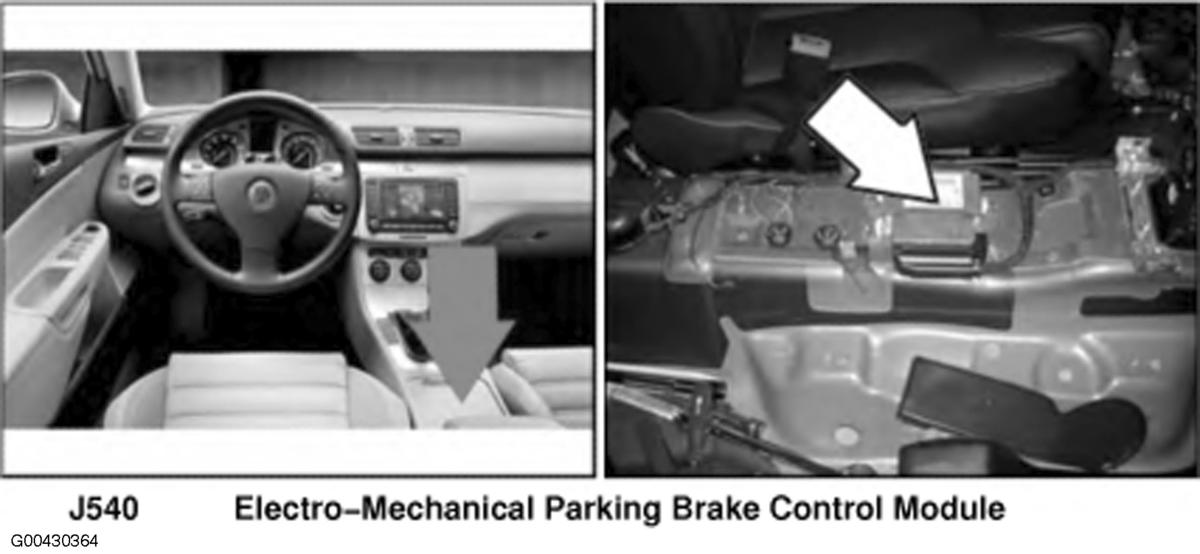

| Electro-Mechanical Parking Brake Control Module | Under center console. See Figure. |

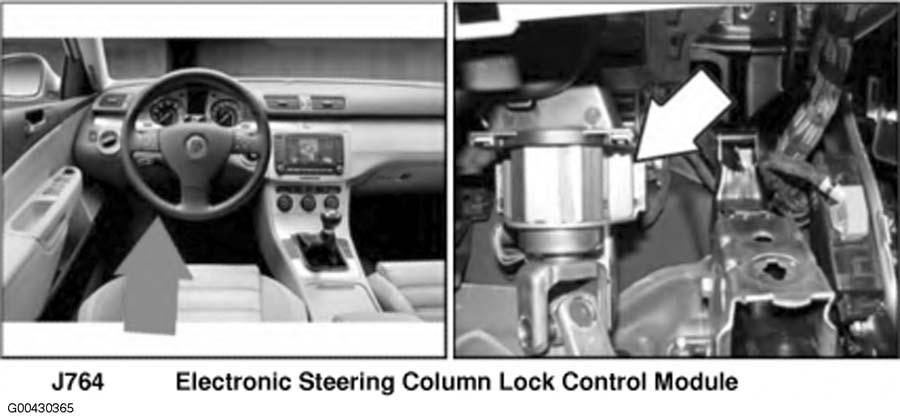

| Electronic Steering Column Lock Control Module | Under left side of dash. See Figure. |

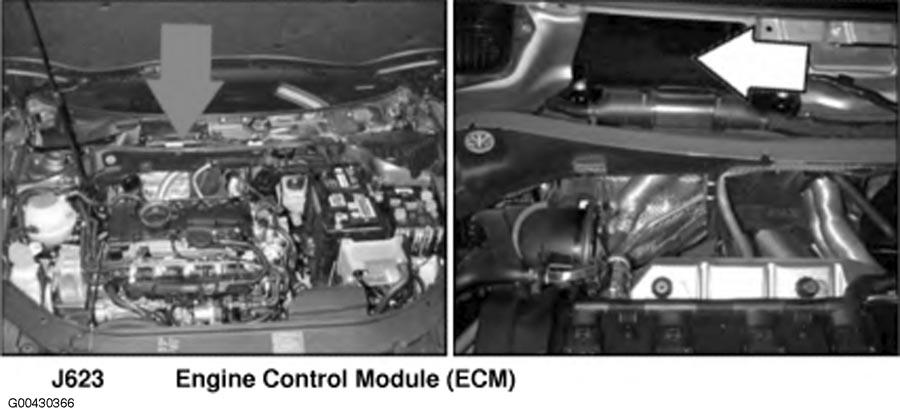

| Engine Control Module | In center of plenum. See Figure. |

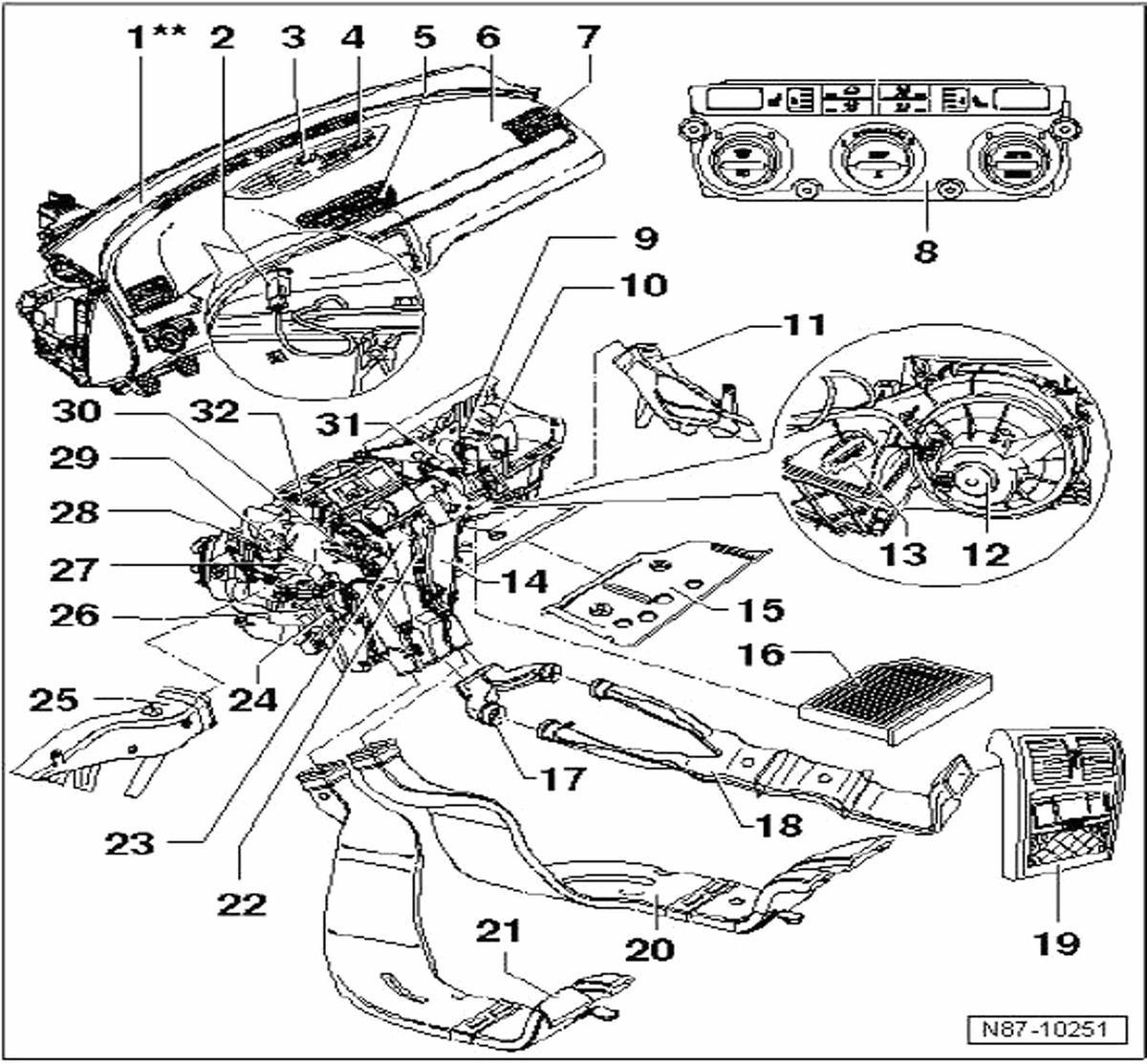

| Fresh Air Blower Control Module (12) | On fresh air blower motor. See Figure. |

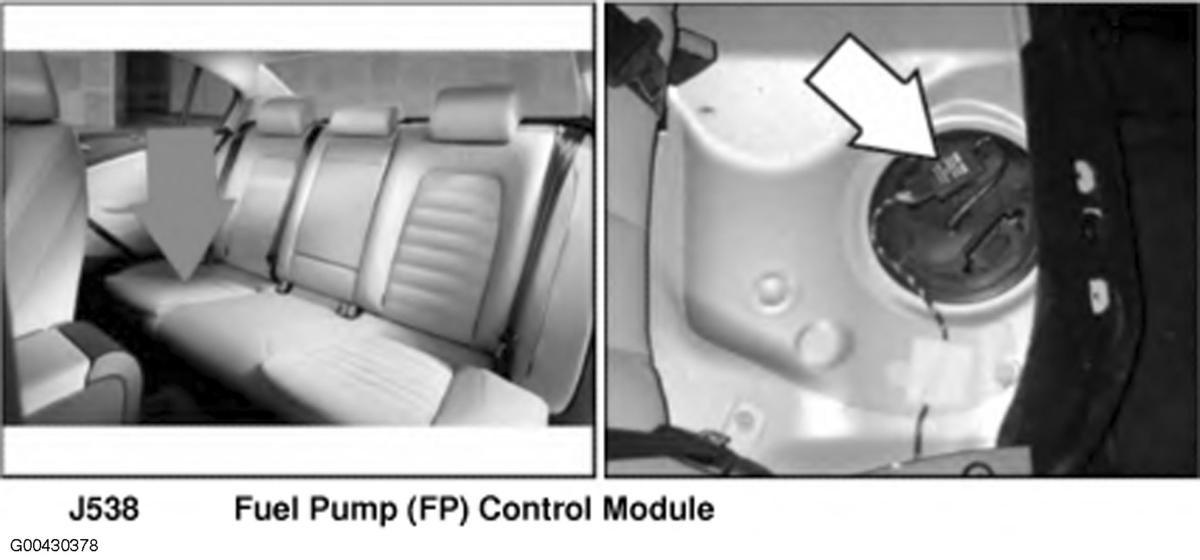

| Fuel Pump Control Module | Under right rear seat. See Figure. |

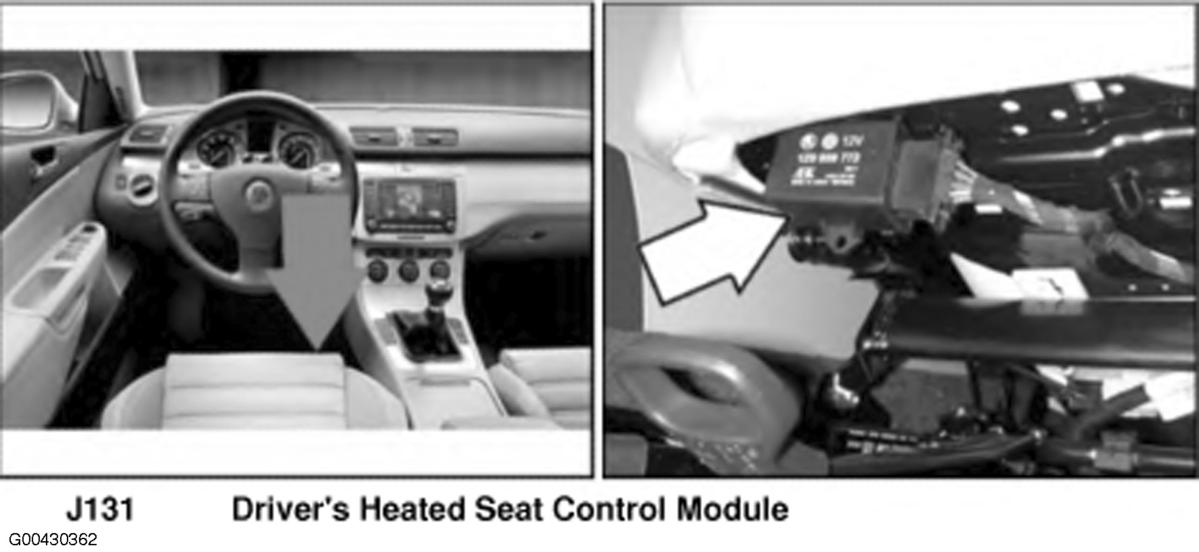

| Heated Seat Control Module (Driver's) | On driver's seat frame. See Figure. |
| Parking Aid Control Module | Right side of trunk. |

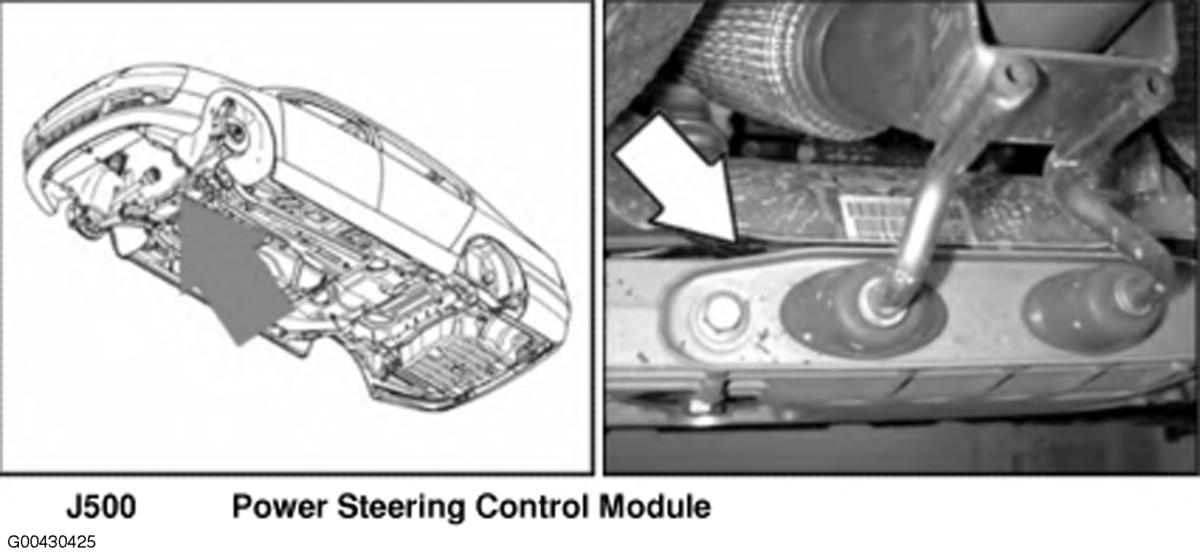

| Power Steering Control Module | Integral with steering gear assembly. See Figure. |
| Radar Interior Monitoring Control Module 1 (6) | In roof console. See Figure. |
| Radiator Fan Control Unit | Integrated into radiator fan assembly. |

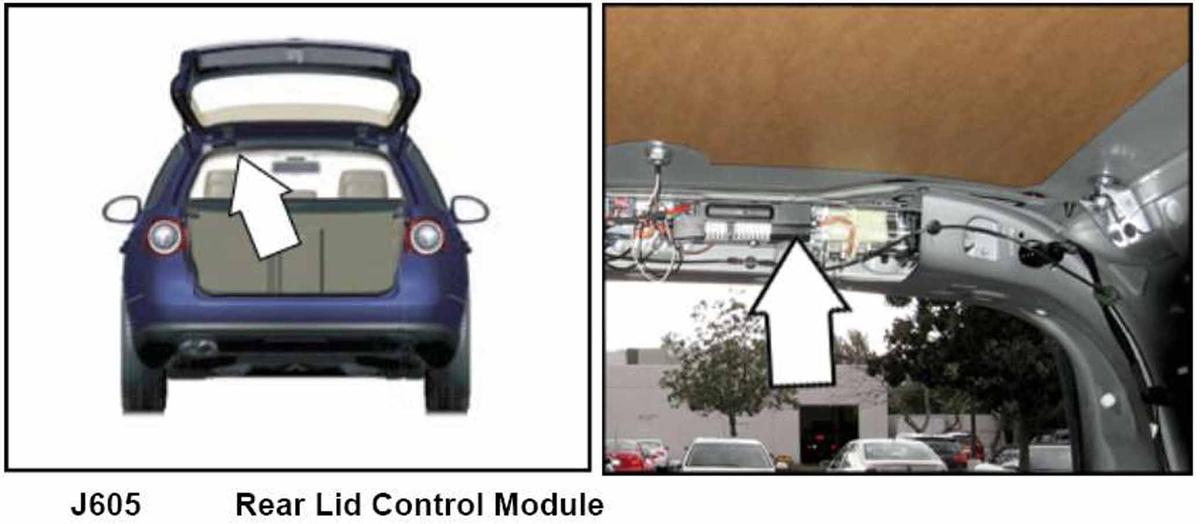

| Rear Lid Control Module | Left rear of roof. See Figure. |

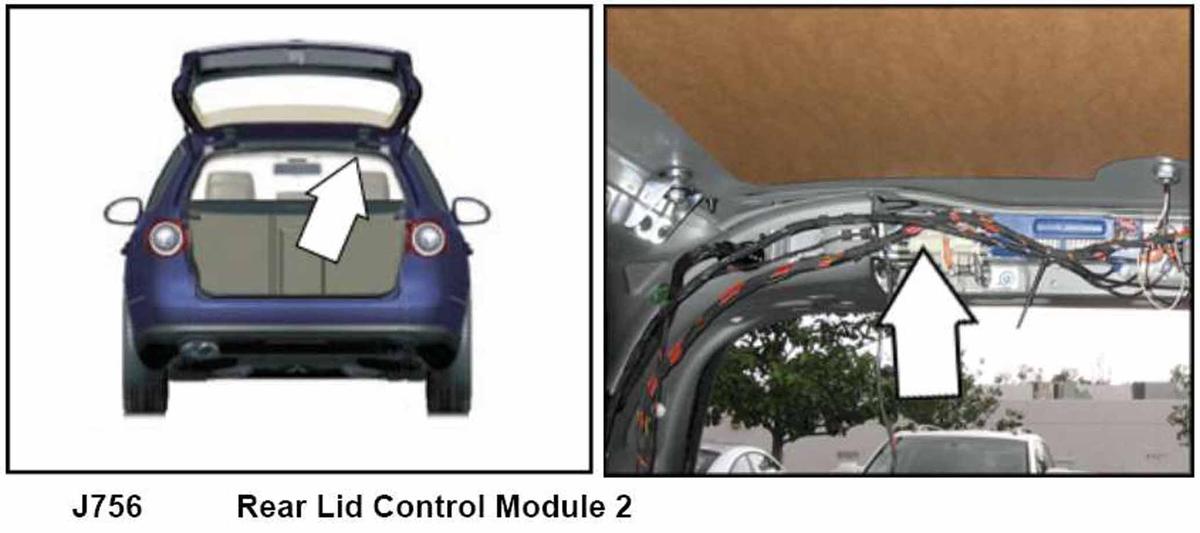

| Rear Lid Control Module 2 | Right rear of roof. See Figure. |

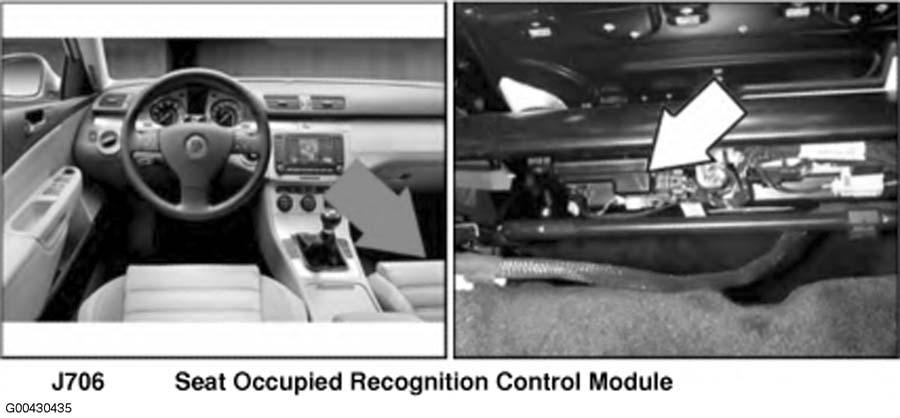

| Seat Occupied Recognition Control Module | Under front passenger's seat. See Figure. |

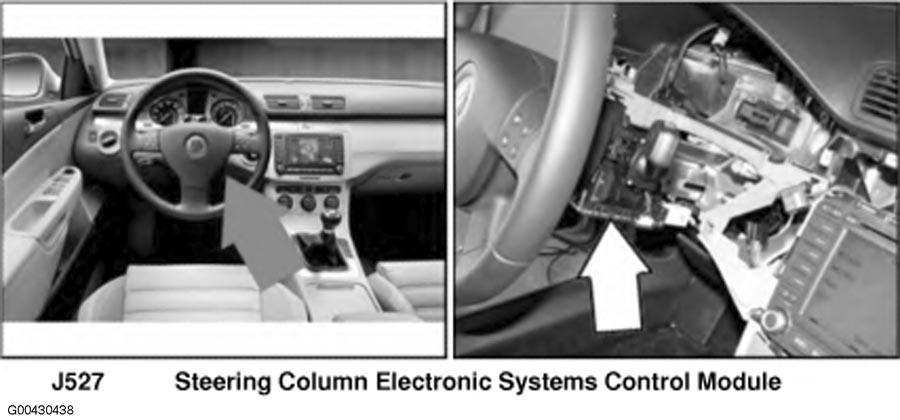

| Steering Column Electronic Systems Control Module | On steering column. See Figure. |

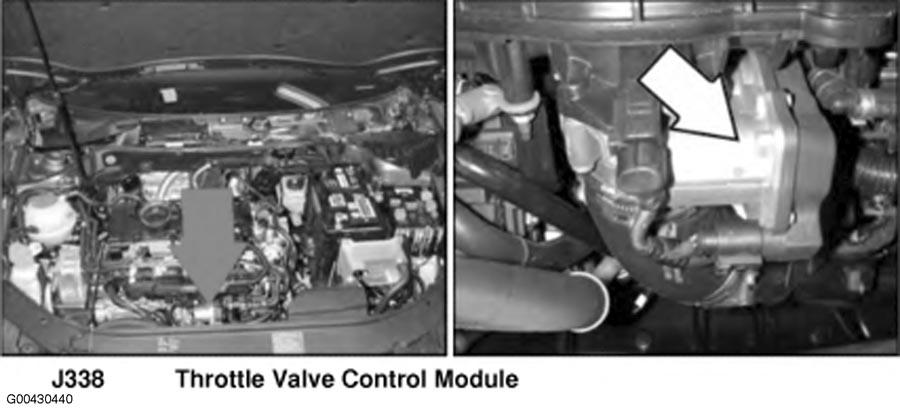

| Throttle Valve Control Module | On left side of engine. See Figure. |
| Transmission Control Module (TCM) | In left front wheelwell. See Figure. |

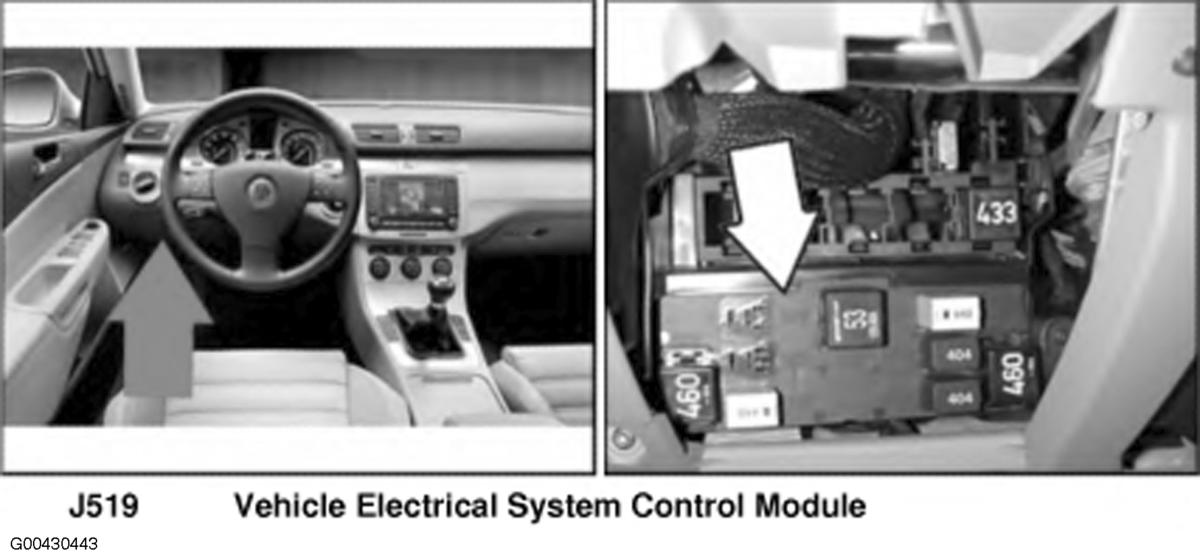

| Vehicle Electrical System Control Module | Behind left side of dash. See Figure. |

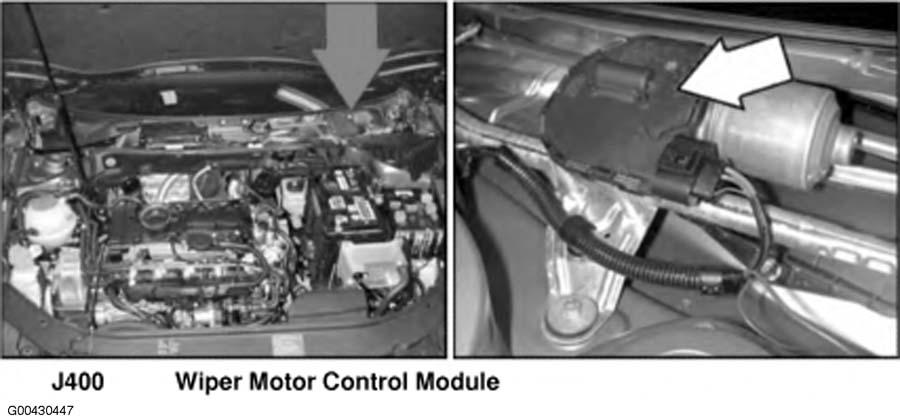

| Wiper Motor Control Module | In left side of plenum. See Figure. |
