Refrigerant Pressure Sensor / Switch: Service and Repair

A/C Pressure Switch and High Pressure Sensor

Removing

• Components can be removed without discharging refrigerant system.

- Disconnect electrical connection to switch/sensor

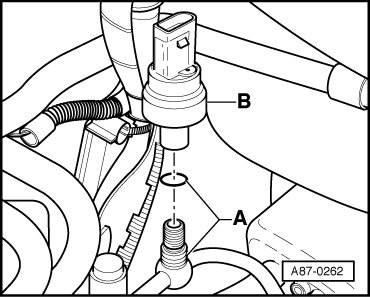

- Remove by turning switch/sensor - B - counterclockwise (switch/sensor threaded onto refrigerant pipe equipped with Schrader valve).

Installing

- Install in reverse order of removal, noting the following.

• Always replace O-ring seal - A - (10.8; 1.8mm)

• Tightening torque 5 Nm.
