Windshield Wiper System Overview
WARNING: This page is about a different car, the 2011 Volkswagen Eos, 2010 Volkswagen Eos, 2009 Volkswagen Eos, 2008 Volkswagen Eos, and 2007 Volkswagen Eos. However, it is still accessible from the selected car via links, so may be relevant.

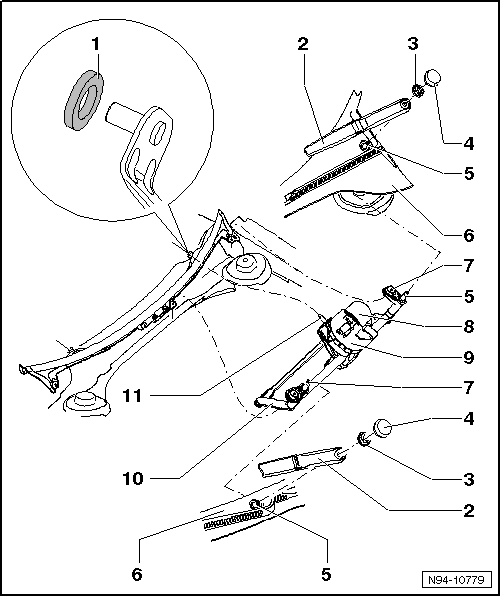

- Grommet
- For mounting wiper motor stud WINDSHIELD WIPER SYSTEM OVERVIEW.
- Wiper Arm
- Removing and installing, refer to WIPER ARMS .
- Checking/adjusting the end position of the windshield wiper blades, refer to END POSITION OF WINDSHIELD WIPER BLADES, CHECKING/ADJUSTING .
- Joint-Free Windshield Wiper, removing and installing, refer to JOINT-FREE WINDSHIELD WIPER .
- Wiper arm service-/winter position, refer to WIPER ARM SERVICE-/WINTER POSITION .
- Hex Head Collar Nut
- 20 Nm
- Tightening specifications overview, refer to WINDSHIELD WIPER AND WASHER SYSTEM, TIGHTENING SPECIFICATIONS .
- Cap
- Removing and installing, refer to WIPER ARMS .
- Wiper Motor Shaft
- Plenum Chamber Cover
- Removing and installing, refer to PLENUM CHAMBER COVER .
- Screw
- 8 Nm
- For mounting wiper frame to body.
- Tightening specifications overview, refer to WINDSHIELD WIPER AND WASHER SYSTEM, TIGHTENING SPECIFICATIONS .
- Windshield Wiper Motor -V- NOTE:
Forms a common assembly unit with Wiper Motor Control Module -J400-.
- Removing and installing, refer to removing and installing front windshield wiper system WINDSHIELD WIPER SYSTEM .
- Wiper Motor Control Module -J400- NOTE:
Forms a common assembly unit with Windshield Wiper Motor -V-
- Removing and installing, refer to removing and installing front windshield wiper system WINDSHIELD WIPER SYSTEM .
- Wiper Linkage
- Removing and installing, refer to removing and installing front windshield wiper system WINDSHIELD WIPER SYSTEM .
- Pins
- Is guided into grommet WINDSHIELD WIPER SYSTEM OVERVIEW.
