Windshield Washer System Overview
WARNING: This page is about a different car, the 2011 Volkswagen Eos, 2010 Volkswagen Eos, 2009 Volkswagen Eos, 2008 Volkswagen Eos, and 2007 Volkswagen Eos. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Two different versions of reservoir for windshield washer and headlamp cleaning systems are installed, depending on equipment. Illustration shows the version for vehicles without parking heater.

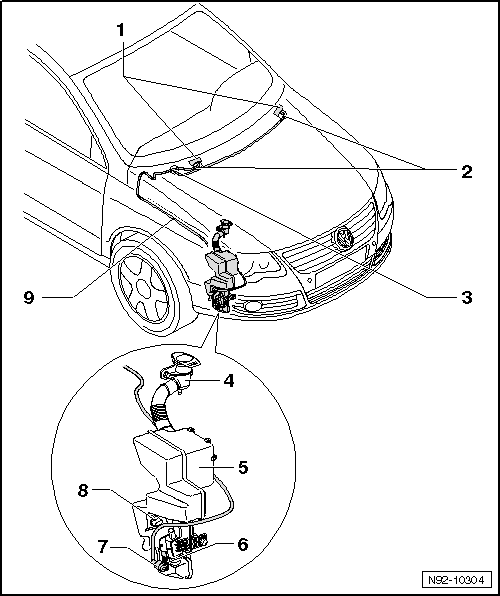

- Washer Nozzles For Front Windshield Washer System
- Removing and installing, refer to SPRAY NOZZLES FOR WINDSHIELD WASHER SYSTEM .
- Adjusting, refer to WINDSHIELD WASHER SYSTEM SPRAY NOZZLES, ADJUSTING .
- Angle Coupling
- Connection at washer nozzle for front windshield washer system.
- Washer hose couplings, overview, refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Y-Connection
- Divides washer fluid line to the windshield washer spray nozzles.
- Filler Tube For Tank For Windshield Washer System and Headlamp Cleaning System
- Removing and installing, refer to WINDSHIELD AND HEADLAMP WASHER FLUID RESERVOIR .
- Washer Fluid Reservoir
- Removing and installing, refer to WINDSHIELD AND HEADLAMP WASHER FLUID RESERVOIR .
- Windshield Washer Pump -V5-
- Removing and installing, refer to WINDSHIELD WASHER PUMP -V5- .
- Angle Coupling
- Connection on Windshield Washer Pump -V5-.
- Washer hose couplings, overview, refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Windshield Washer Fluid Level Sensor -G33-
- Removing and installing, refer to WINDSHIELD WASHER FLUID LEVEL SENSOR -G33- .
- Hose
- Hose repair, refer to HOSES, REPAIRING .
