Service Position, Implementing

WARNING: This page is about a different car, the 2011 Volkswagen Eos, 2010 Volkswagen Eos, 2009 Volkswagen Eos, 2008 Volkswagen Eos, and 2007 Volkswagen Eos. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Minor changes to service position must be kept in mind, depending on engine version.

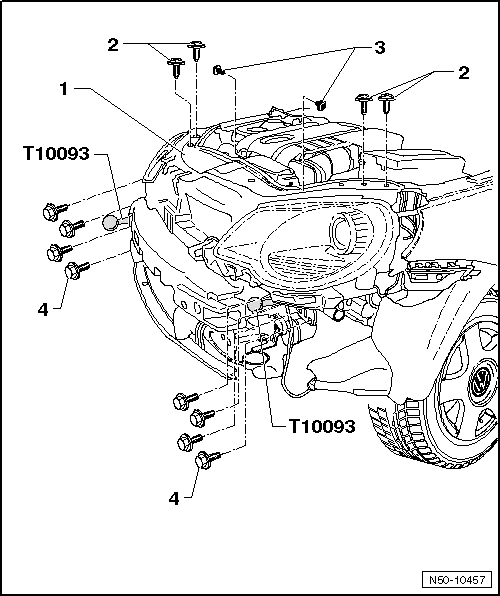

Fig 1: Identifying Assembly Overview: Lock Carrier Service Position

Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Remove front bumper cover. Refer to FRONT BUMPER COVER .

-- On vehicles with a 6-cylinder fuel injection engine and HID headlamps, remove the headlamps. Refer to [For transmission(s) 02E, 02Q] [For engine(s) BPY, CCTA, BUB, CBFA] Removal and Installation .

-- Remove the noise insulation. Refer to NOISE INSULATION

-- In vehicles with charge air cooler, disconnect pressure hoses. Refer to PRESSURE HOSES, DISCONNECTING .

-- Release, disconnecting. Refer to RELEASE COUPLING

-- Remove the bolts -3- and remove the air guide channel from the lock carrier.

-- Remove bolts -4- from left and right longitudinal members.

-- Install guide rod -T 10093- on left and right longitudinal members.

-- Remove bolts -2- at left and right on top of lock carrier -1-.

-- Lock carrier -1- can be pulled toward front approximately. 10 cm on guide rod -T 10093-.
