Comfort System Central Control Module -J393-, Immobilizer System, Replacement (GROUP 96, NO. 08-07)

Publication date: 2008-11-05
Reference number: GROUP 96, NO. 08-07
Supersedes refnos: 2017731, GROUP 96, NO. 08-03

COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, IMMOBILIZER SYSTEM, REPLACEMENT

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 96, NO. 08-07 (2017731), Date of Issue: November 5, 2008

VOLKSWAGEN:	Passat, Passat Wagon, CC, 2006-2009
GROUP:	96 - Lights - Interior, Air bag

Superceded Bulletin(s): GROUP 96, NO. 08-03, Date of Issue: May 16, 2008

SERVICE INFORMATION

APPLICABLE MODELS AND YEARS

Model(s)	Year	Eng. Code	Trans. Code	VIN Range From	VIN Range To
Passat, Passat Wagon, CC	2006-2009	All	All	All	All

CONDITION

96 08 07 Nov. 5, 2008 2017731 Supersedes T. B. Group 96 Number 08-03 dated May 16, 2008 due to additional models year, modified content and a NOTE with regards to the tester screen saver and power settings in accordance to Special Tools and Equipment - Service Information Document # VSE-08-18.

Comfort System Central Control Module -J393-, Immobilizer System, Replacement

TECHNICAL BACKGROUND

Please review entire bulletin to become familiar with procedure prior to performing repair.

Properly diagnosing and servicing the immobilizer system can be challenging. This technical bulletin is designed to assist with adaptation for comfort system central control module -J393- replacement ONLY.

Tip: Refer to technical bulletin 2016689 to replace electronic steering column lock module -J764- and comfort system central control module -J393- together.

PRODUCTION SOLUTION

Not applicable.

SERVICE

Service Sections:

Prerequisites
Replacement of Comfort System Central Control Module -J393-
Additional Functions

PREREQUISITES

The Electronic Steering Column Lock Module -764- must be replaced along with the -J393- if ELV is an index "D" or below. This only applies to MY 2006 & early MY 2007 vehicles. If this is applicable, refer to technical bulletin 2016689 . ELV can only be found in GFF fault log.

ELV is part number 3C0 905 861 + index. If a GFF fault log is unable to be obtained, this can be found by going directly in to Immobilizer via address word 25 using flash to pass to obtain "15 Power". This must be done with the original -J393-.

Tip: ELV is a diagnostic term for ESCL.

Fig 1: ELV Part Number

NOTE: This information was previously explained in Technical Bulletin 2011776 .

VAS 5051 with Brand CD version 14.88.00 or higher. VAS 5052 may not be used as the scan tool. This is due to the need to have an external power source for the scan tool. A 110V AC connection for the scan tool must be used as battery voltage is critical.
Internet connection within reach of the vehicle.
Retrieve, if possible, long coding of comfort system central control module -J393- and short coding of ABS control module -J104-.

Tip: A long coding job aid can be found on ServiceNet under Support for additional information on how to retrieve coding.

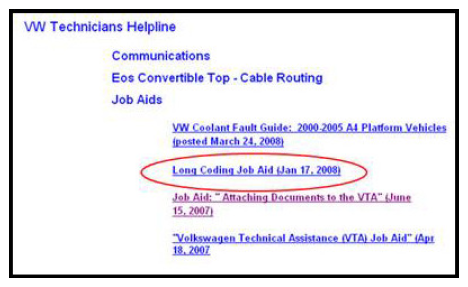

Fig 2: Long Coding Job Aid On ServiceNet

NOTE: Prior to launching VAS-PC application and starting control module update process, confirm tester screen saver and power settings in accordance with Special Tools and Equipment - Service Information Document # VSE-08- 18. Failure to do so may result in the tester entering power save mode during data transfer, and subsequent control module failure.

REPLACEMENT OF COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-

NOTE: Notify customer that all vehicle keys MUST be present for adaptation purposes.

Disconnecting scan tool during a test plan may result in comfort system central control module -J393- and/or -J764- failure. Replacement of failed components a second time will be dealer responsibility.
The battery must be tested using the Midtronics tester before the adaption process begins. A failed battery must be replaced before this procedure is performed.
Disconnect battery.
Replace Comfort Convenience Module. See Repair Manual Group 57 Front Doors, Central Locking System.
Connect battery.
Connect the Midtronics In-Charge 940 (INC-940) tester/charger to maintain voltage of 12.5V - 14.5V.

Tip: Pull in and retain the turn signal lever (Flash to Pass). This initiates CanBus communication control module. Communication will be limited to the immobilizer at this time.

Perform GFF Collection Service.
Select "Go to" and "Function/Component Selection".
Select "Chassis -> Electrical System (Repair Group 01; 27; 90 to 97) -> 01 Systems capable of self-diagnosis -> Immobilizer -> Immobilizer functions -> Adapting anti-theft immobilizer".

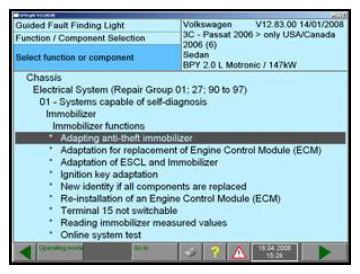

Fig 3: VAS Display - Select Adapting Anti-Theft Immobilizer

Key Points To Remember While Performing Adaptation

Key position is critical to performing adaptation. Follow test plan carefully.
Country code "444" must be used for United States vehicle and "999" used for Canadian vehicles. Do NOT use "USA" or "Canada" or any other variation except for what is stated.
DO NOT attempt to start vehicle until online connection is terminated.
Once adaptation is complete and the online connection has been completed, verify that vehicle starts with each key adapted.
Once keys are adapted, proceed to Additional Functions to complete repair.

ADDITIONAL FUNCTIONS

Comfort Control Module -J393- De-Activation Of Factory Mode

Exit completely out of GFF and then re-enter GFF (Necessary for scan tool to identify VIN for online coding).
Perform "GFF Collection Service".
Select "Go to" and "Function/Component Selection".
Select "Chassis -> Body Collision Repair (Repair Group 01; 50 to 77) -> Convenience system -> Functions - Central CM for convenience system -> Comfort System Central CM deactivating factory mode -J393-.
Perform function test.

Once the function is complete, Comfort System Central Control Module -J393- will be out of factory mode.

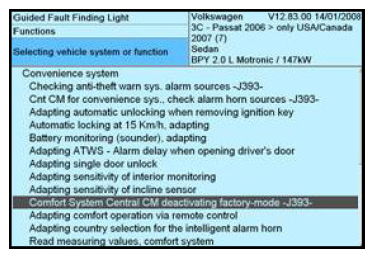

Fig 4: VAS Display - Select Comfort System Central Control Module -J393- Coding

Comfort System Central Control Module -J393- Coding

Select "Chassis -> Body Collision Repair (Repair Group 01; 50 to 77) -> Convenience system -> Functions - Central CM for convenience system -> Replacing/coding Comfort System Central Control Module -J393-.
Select "Yes" when questioned if you want to replace or code control module.
Select option "1" to use online coding or option "2" if you were able to retrieve your coding before parts replacement.

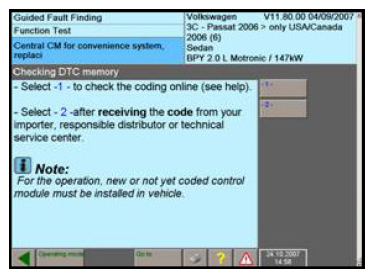

Fig 5: VAS Display - Central CM For Convenience System Replace

Tip: A screen may appear stating that the coding was not accepted, but will show the coding entered in manually using option "2".

Select "Done" to accept coding.

Radio - Remote Control (Key) - Adapting

Select "Chassis -> Body Collision Repair (Repair Group 01; 50 to 77) -> Convenience system -> Functions - Central CM for convenience system -> Adapting Keys with Radio-remote Control -J393-.
Perform the function test to adapt the remotes.

NOTE: ALL keys MUST be present to perform procedure. If all keys are not present, procedure will have to be performed again once all keys are present.

Tire Pressure Monitoring System - Coding (If equipped)

Select "Operating Mode > Vehicle Self Diagnosis > On Board Diagnostic (OBD) > 65 - Tire Pressure Monitoring > 007 Coding (Service $1A)".
Enter in "100100" and select "Q".

Tire Pressure Monitoring System - Adapting (If equipped)

Tip: TPMS adaptation is necessary as the default factory setting for the TPMS is 5.5 Bar for each wheel.

Select "Back Arrow".
Select "Access Authorization".
Enter "1503" and select "Q".
Select "Back Arrow" 3 times.
Select "Adaption".
Enter "5" and select "Q".

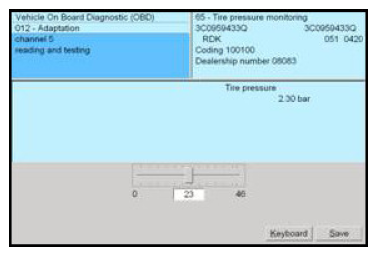

Fig 6: VAS Display - TPMS Adaptation

NOTE: Observe tire pressure rating on door label. Pressure value MUST be entered in Bar. Calculate BAR by dividing the KPA by 10.
You do not need to enter access code for remaining 3 tire adaptations.

Enter the appropriate tire pressure in Bar from label and select "Save" then "Accept".
Repeat tire pressure adaptation for channels 6-8.
Once complete, exit GFF.

Assembly

Reinstall any cosmetic panels.

Final Steps

Perform functional check of doors, remotes, trunk/hatch operations.
Perform a test drive to confirm proper operation of the vehicle.

WARRANTY

WARRANTY INFORMATION

To determine if this procedure is covered under Warranty, always refer to the Warranty Policies and Procedures Manual ⁽¹⁾

Model(s)

Year(s)

Eng. Code(s)

Trans. Code(s)

VIN Range From

VIN Range To

Passat, Passat Wagon, CC

2006 -2009

All

Claim Type:

Use applicable Claim Type ⁽¹⁾

SAGA Coding

Service Number:

Damage Code

Damage Location (Depends on Service No.)

Parts Manufacturer (removed part)

5789

0040

Use applicable when indicated in ElsaWeb (L/R)

_ _ _⁽²⁾

Labor Operation ⁽³⁾ : Adaptation

57892599 = 80 TU

Labor Operation ⁽³⁾ : Glove Box R & R

68151900 = 30 TU (without CD changer) or 68151903 = 40 TU (with CD changer)

Labor Operation ⁽³⁾ : Module Replacement

57895550 = 10 TU

Labor Operation ⁽³⁾ : Battery Check

27060100 = 20 TU

Diagnostic Time ⁽⁴⁾

GFF Time expenditure

01500000 = Actual print out

YES

Road Test

01210004 = 10 TU max.

YES

Technical Diagnosis

01320026 = 100 TU max. (any technical diagnosis above 100 TU requires a VTA case number)

YES

Claim Comment: Input "As per Technical Bulletin 2017731" in comment section of Warranty Claim.

⁽¹⁾	Vehicle may be outside any Warranty in which case this Technical Bulletin is informational only.

⁽²⁾	Code per warranty vendor code policy.

⁽³⁾	Labor Time Units (TUs) are subject to change with ELSA updates.

⁽⁴⁾	Documentation required per Warranty Policy & Procedures Manual.
