Window Handle: Service and Repair

Window Crank

• Removal and installation is described for the right side of the vehicle. Removing and installing on the left side is identical.

Removing

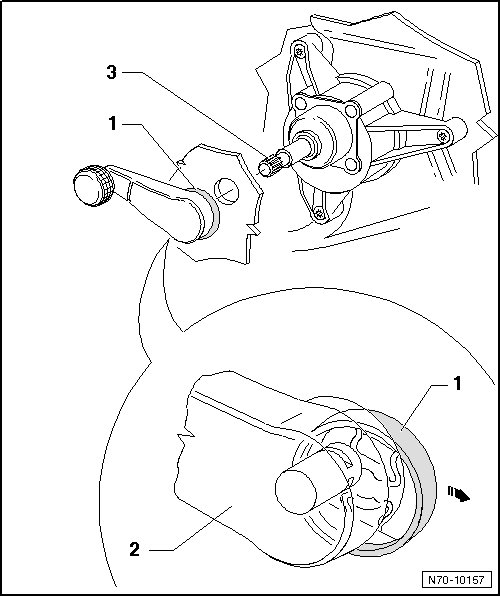

- Press circlip - 1 - back in direction of travel - arrow - and remove window crank - 2 - from drive mechanism - 3 -.






Installation

- To install, perform the steps used for removal in reverse order.

• After installation, the window crank must point forward horizontally 6° when window is closed.

• Deviation of window cranks to each other must be 6° max.
