Rear Window Assembly Overview

Rear Window Assembly Overview

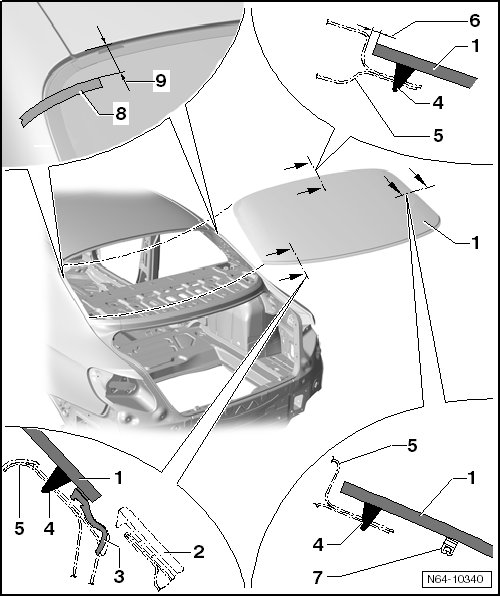

1 Rear Window

2 Rear lid

3 Sealing lip

4 PUR adhesive sealant

• Bead diameter: width = 6.5 mm, height = 10 mm (including pre-coating, residual material on window glass and window flange)

• Minimum curing time, refer to => [ Minimum Curing Time for Bonded Windows ] Minimum Curing Time for Bonded Windows

5 Body flange

6 Gap dimension

• Set a constant dimension at the top and sides of 2.5 mm using the adjustment gauge (3371)

7 Contact for window heater

8 Adhesive tape

• Duct tape to hold the rear window in the installation position until the adhesive hardens.

9 Distance dimension

The adhesive tape is applied at a distance of 150 mm from the roof edge.
