Steering Control Module: Locations






Control modules in engine compartment

Power steering control module -J500-




Component Location:

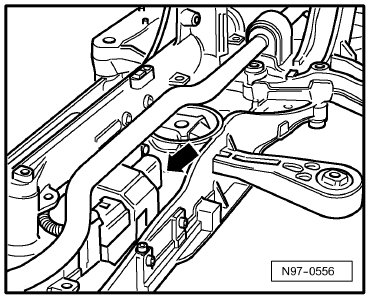

At steering on subframe, center -Arrow-

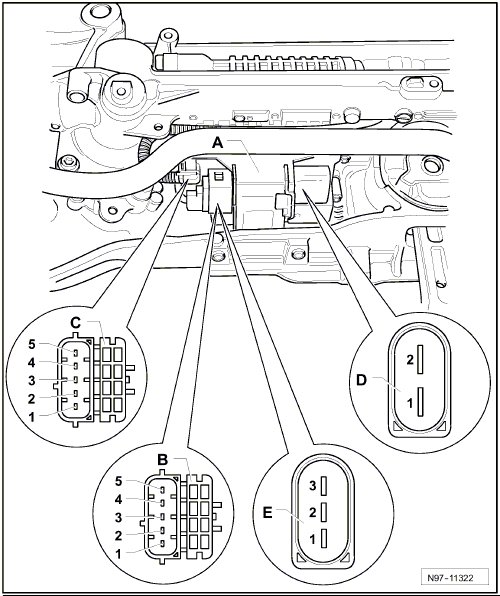

Pin Arrangements:







A - Power steering control module -J500-
Connector:

B - Not installed

C - 5-Pin Connector -T5z-

D - 2-pin connector -T2fn-

E - 3-pin connector -T3dt-
