Body Emblem

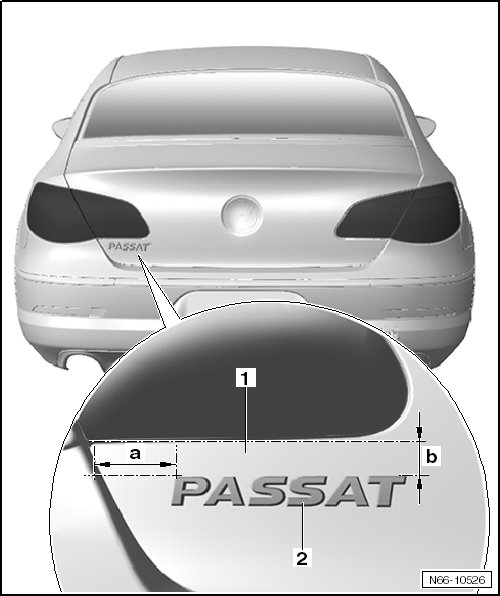

Rear Emblem Dimensions

• The "Passat" name plate is only an example.

• Different name plates are installed.

• The dimensions are identical for all name plates.





1 Rear lid

2 Name plate

• - Dimension a - from the side edge of the lid to the name plate is 43 mm

• - Dimension b - from the lower edge of the tail lamp to the name plate is 20 mm
