Air Bag Control Module: Locations
Control modules in interior
Airbag Control Module -J234-

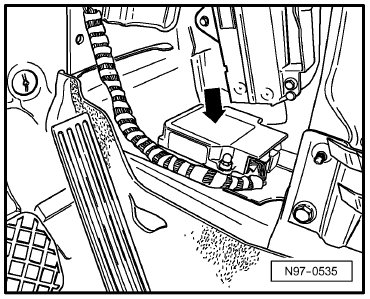

Component Location:
Below front center console -Arrow-

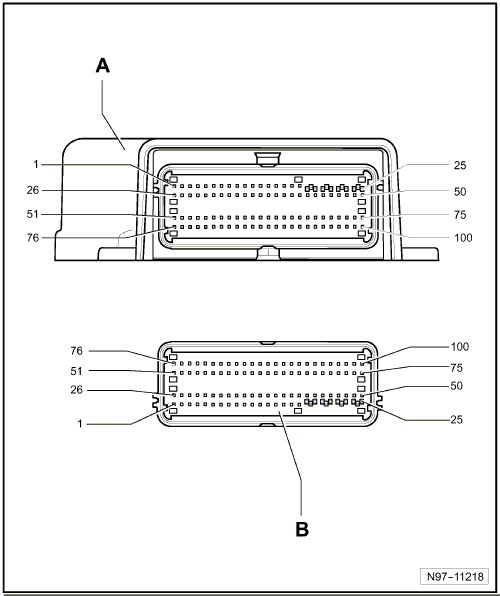

100-pin, Pin Arrangements:
A - Airbag Control Module -J234-
Connector:
B - 100-pin connector -T100-
B - 100-pin connector -T100a-
