Headlamp Control Module: Locations







Control modules in interior

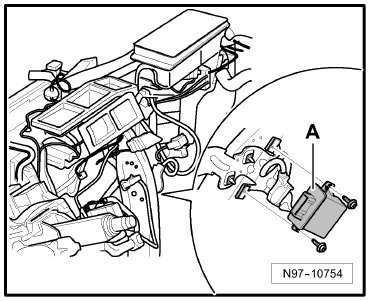

Headlamp Range/Cornering Lamp Control Module -J745-









Component Location:


Behind the glove compartment, left -Arrow A-.
