Climatronic Control Module -J255-







Control modules in interior

Climatronic Control Module -J255-

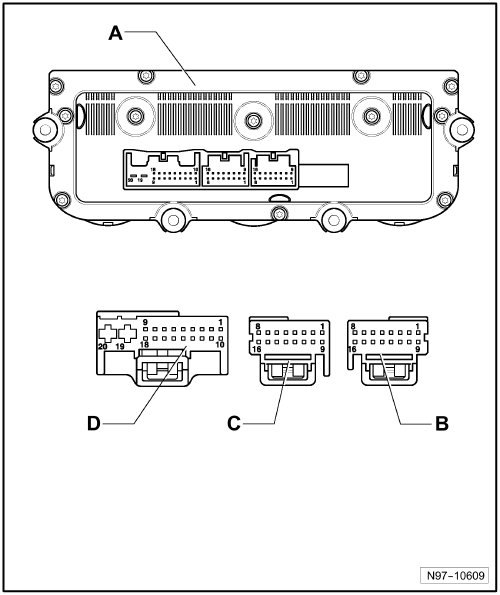

Pin Arrangements:







A - Climatronic Control Module -J255-
Connector:

B - 16-pin connector -T16h-

C - 16-pin connector -T16i-

D - 20-pin connector -T20c-
