Evaporator Temperature Sensor / Switch: Service and Repair

Evaporator Temperature Sensor G308

Removing

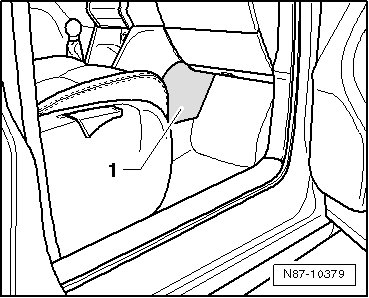

- Remove the cover - 1 - in the front passenger footwell.






- Disconnect connector- 1 - at Evaporator Temperature Sensor.






- Rotate Evaporator Temperature Sensor in - direction of arrow - and remove.

Installing

Install in reverse order of removal.
