FWD

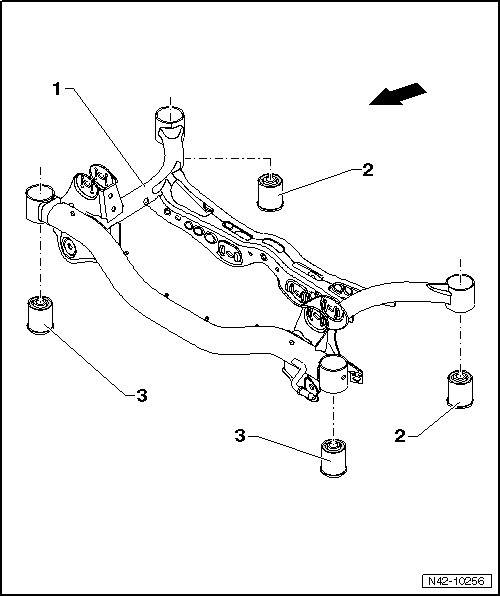

Subframe Overview

The - arrow - points in the direction of travel.






1 Subframe

2 Rear Bonded Rubber Bushing

• Replacing, refer to => [ Subframe Bonded Rubber Bushings ] Subframe Bonded Rubber Bushings.

3 Front Bonded Rubber Bushing

• Replacing, refer to => [ Subframe Bonded Rubber Bushings ] Subframe Bonded Rubber Bushings.
