AWD

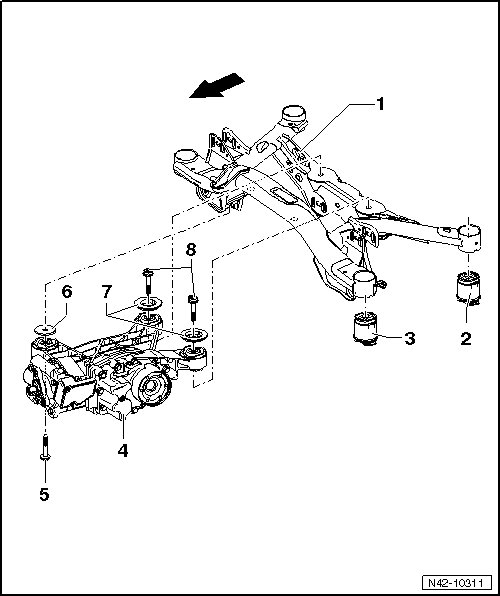

Subframe Overview

The - arrow - points in the driving direction.






1 Subframe

2 Rear Bonded Rubber Bushing

• Replacing, refer to => [ Subframe Bonded Rubber Bushing ] Subframe Bonded Rubber Bushing.

3 Front Bonded Rubber Bushing

• Replacing, refer to => [ Subframe Bonded Rubber Bushing ] Subframe Bonded Rubber Bushing.

4 Rear Final Drive

• Removing and installing, refer to "CC, Tiguan and Golf R Components".

5 Bolt

• M12 x 105

• 60 Nm + an additional 90° turn.

• Always replace if removed.

6 Washer

• Installed between the final drive and the subframe.

7 Washer

• The washer must be placed with the holes on tabs of the bonded rubber bushing.

8 Bolt

• M12 x 105

• 60 Nm + an additional 90° (1/4) turn.

• Always replace if removed.
