Engine to Transmission Tightening Specifications

Engine to Transmission Tightening Specifications

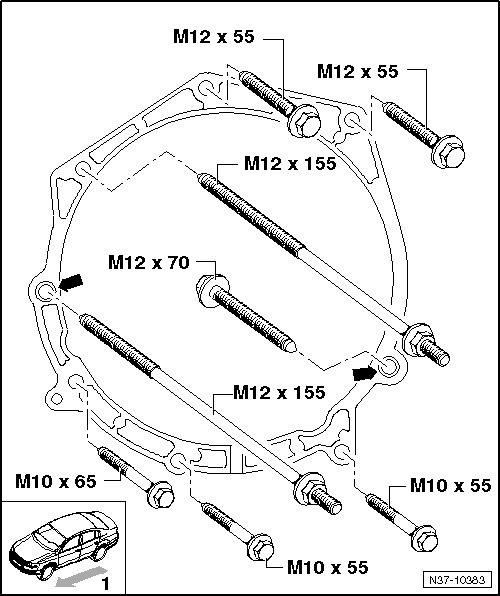

1 - Driving Direction

- Drive Plate to Torque Converter

• 60 Nm.

• Quantity: 6, remove and install using the socket SW!5 (V/175).

- M12 Bolts

• 80 Nm.

• 65 Nm, if using the insert tool 18 mm (T10179).

- M10 Bolts

• 40 Nm.

• The bolts are located in the lower flange.

Arrows - for the Alignment Sleeves Inside the Engine

Additional Tightening Specifications






Transmission Fluid Pipe Brackets to the Transmission





Transmission Fluid Pipes to the Transmission

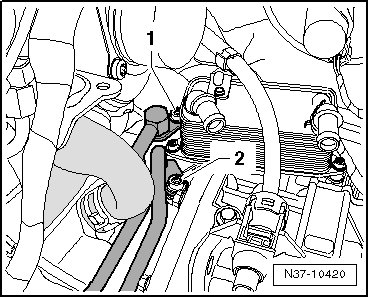

Bolt - 1 - = M8 x 45

Bolt - 2 - = M8 x 38

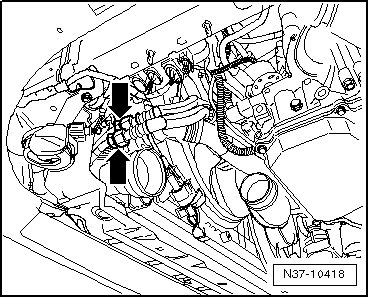

Transmission Fluid Pipes to the Cooler
