Power Steering Control Module -J500-






Control modules in front part of vehicle

Power Steering Control Module -J500-

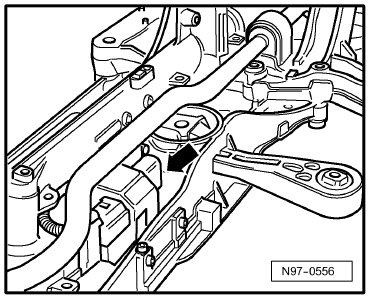

Component Location:







At steering on subframe, center -Arrow-

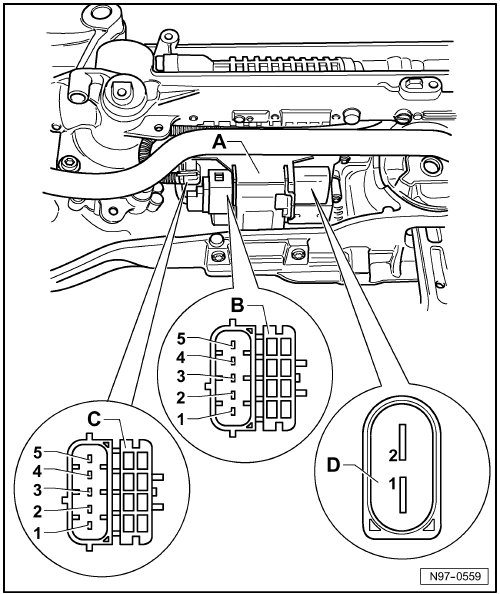

Pin Arrangements:







A - Power Steering Control Module -J500-
Connector:

B - 5-Pin Connector -T5g-, on wiring harness

C - 5-Pin Connector -T5h-, on wiring harness

D - Double Connector -T2a-, on wiring harness
