Headlamp Range Control Module J431

Headlamp Range Control Module J431:



Pin Arrangements:

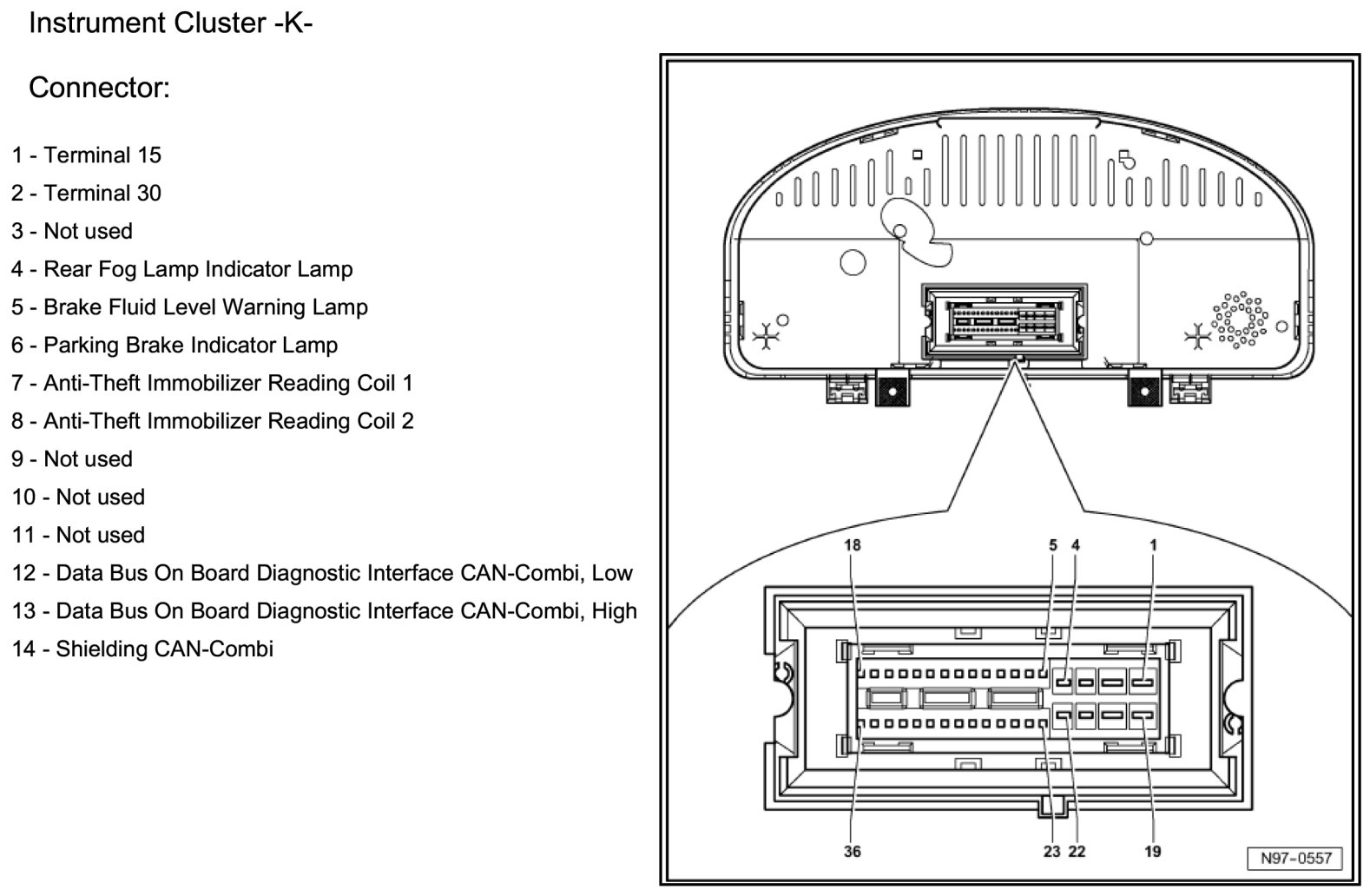

Instrument Cluster K Part 1:

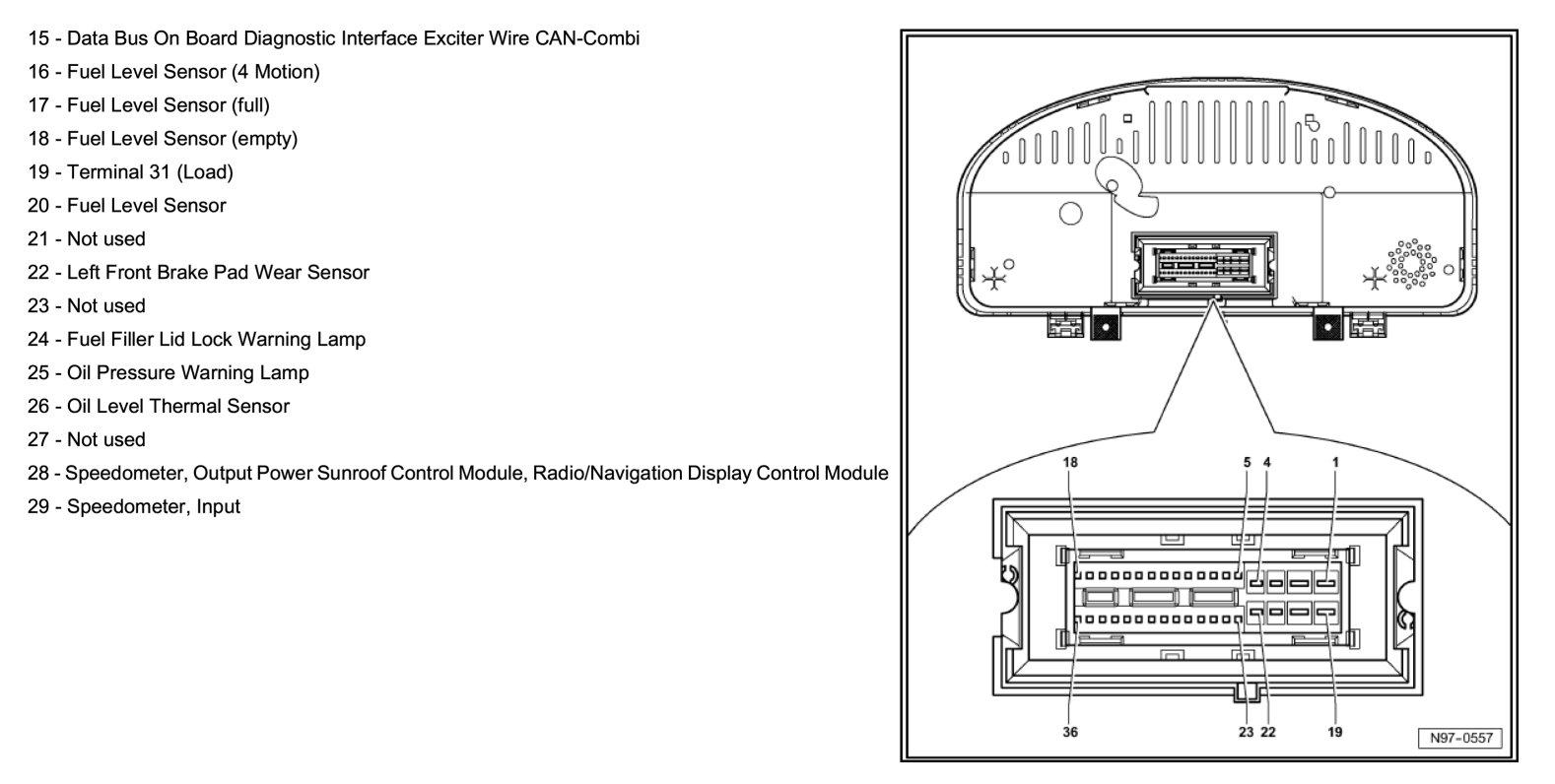

Instrument Cluster K Part 2:
