Fresh Air Blower Control Module






Fresh Air Blower Control Module

Removing

- Remove the fresh air blower (V2) => [ Fresh Air Blower ] Service and Repair.

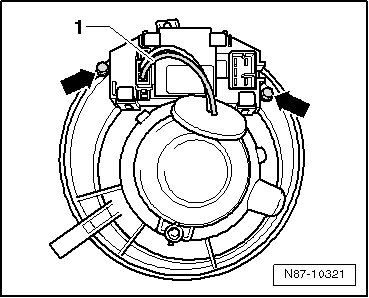

- Disconnect connector - 1 - to Fresh Air Blower (V2).

- Remove bolts - arrows -.

Installing

Install in reverse order of removal.
