Vehicle Electrical System Control Module J519

Vehicle Electrical System Control Module J519:

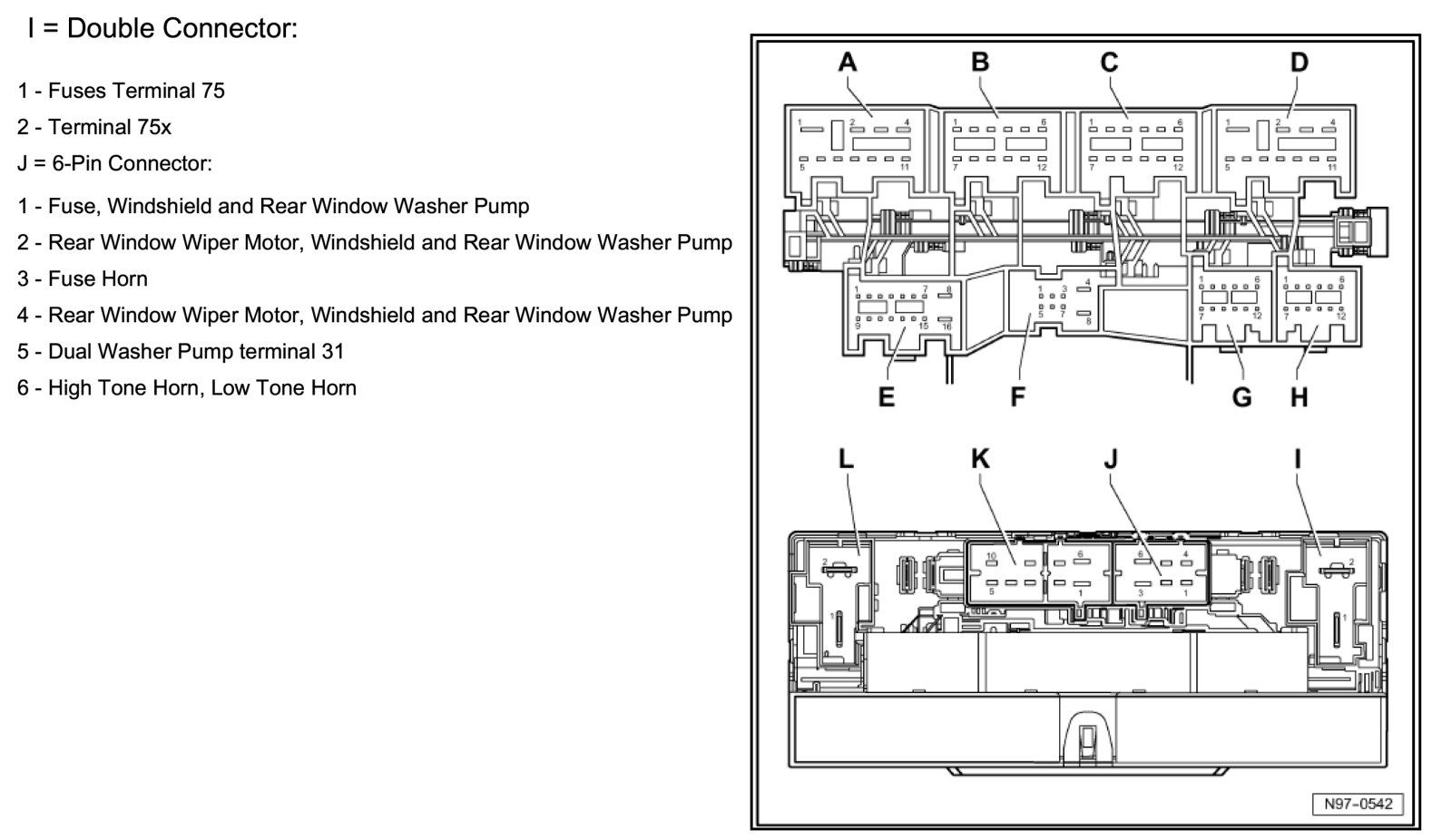

Pin Arrangements Part 1:

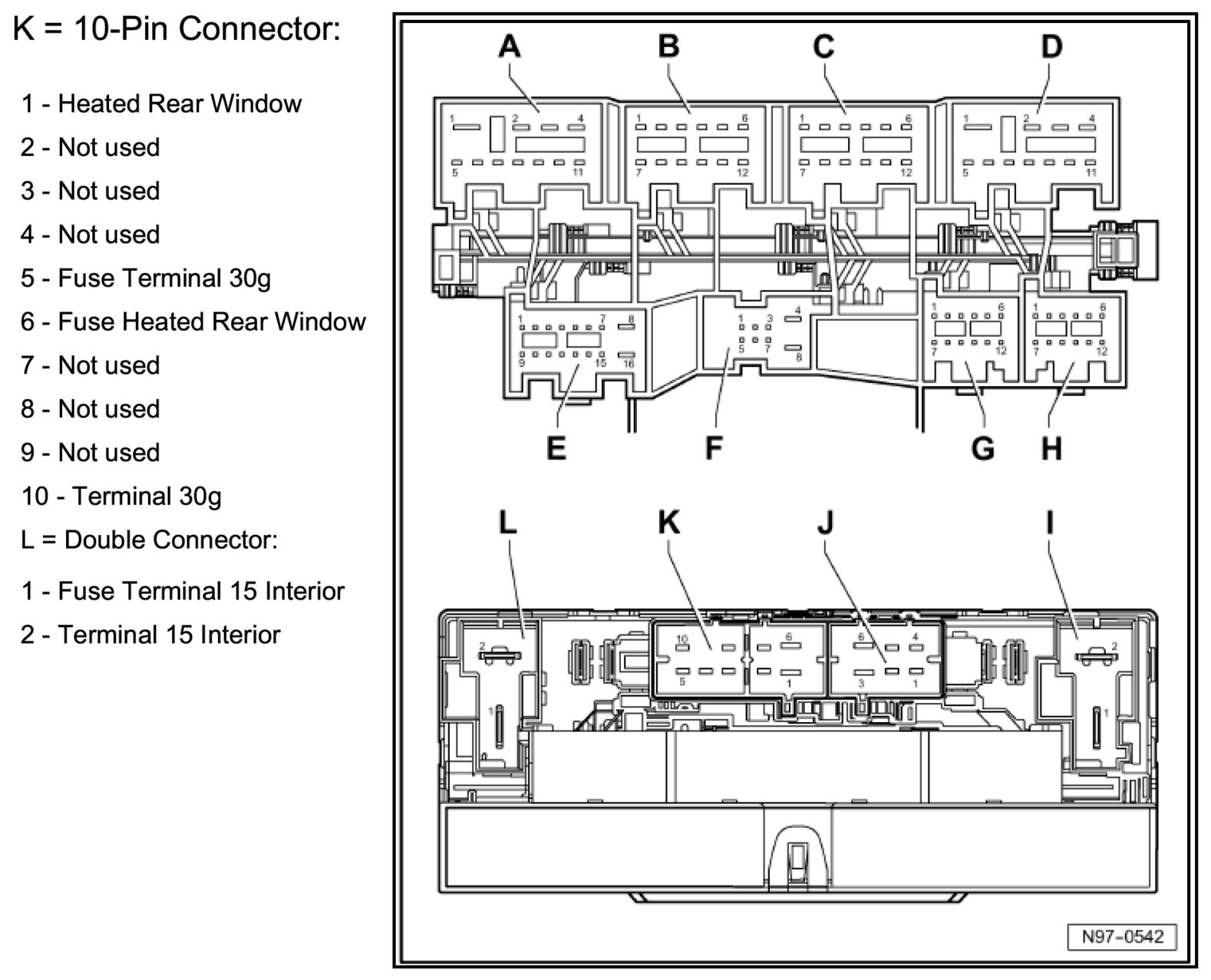

Pin Arrangements Part 2:

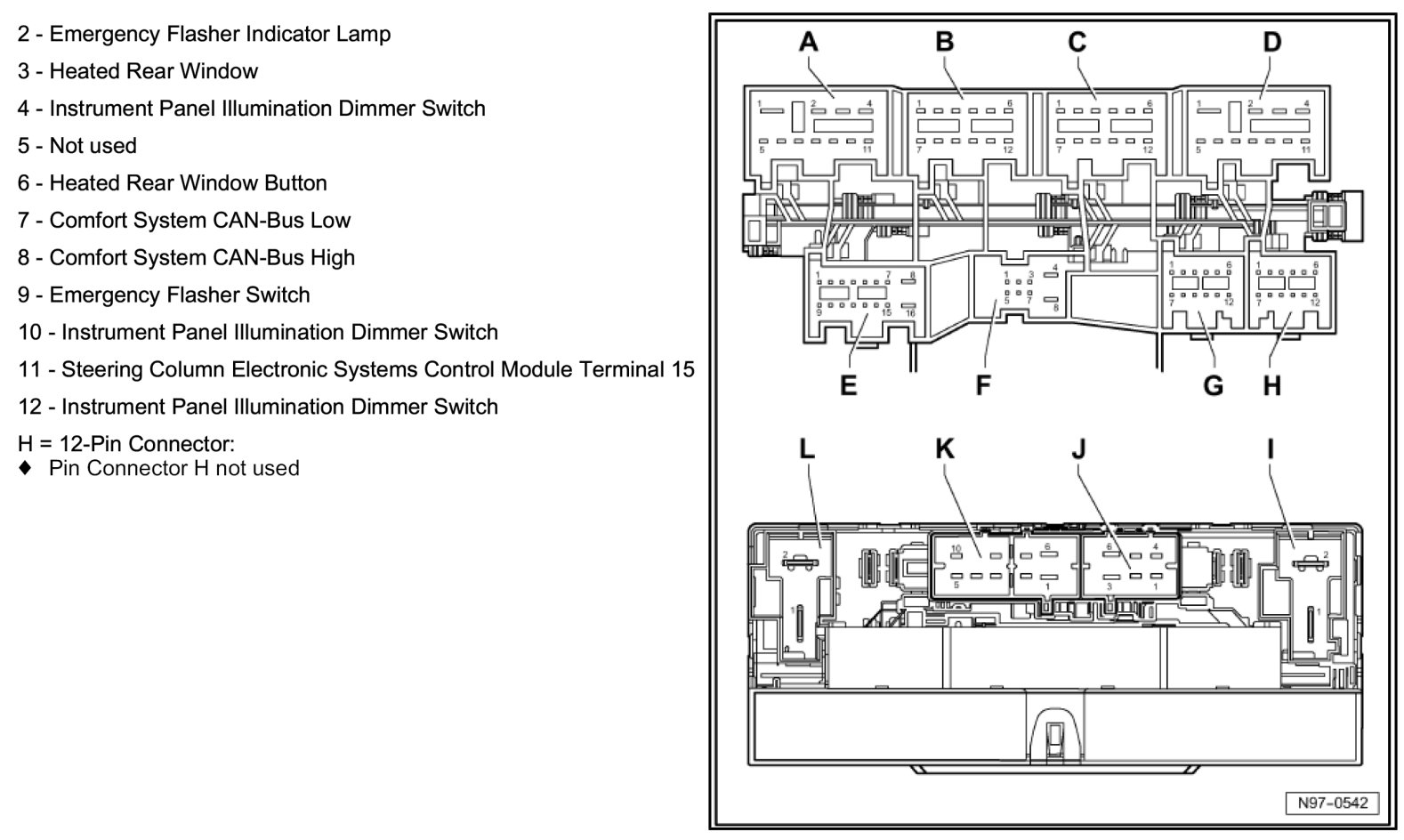

Pin Arrangements Part 3:

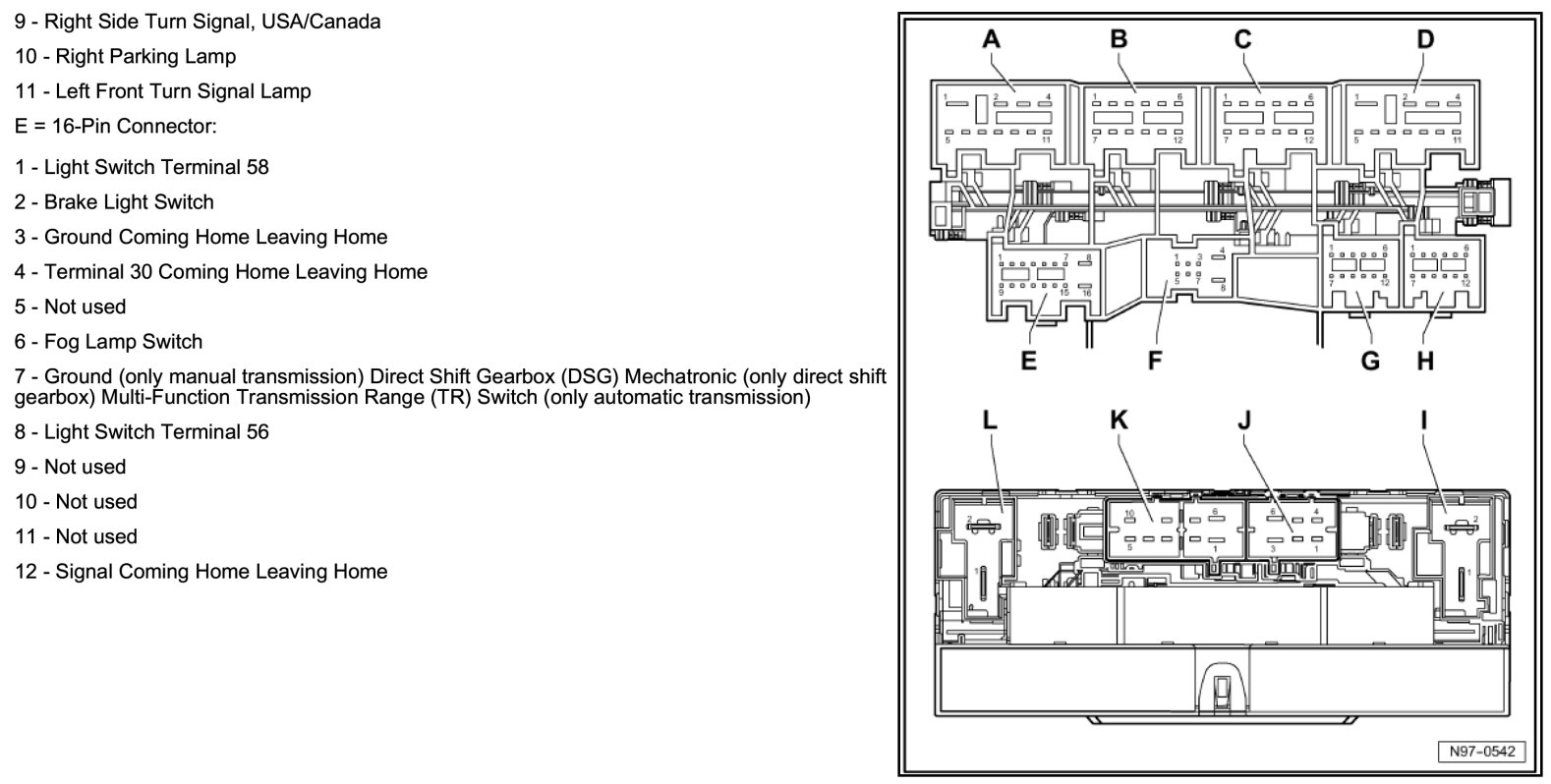

Pin Arrangements Part 4:

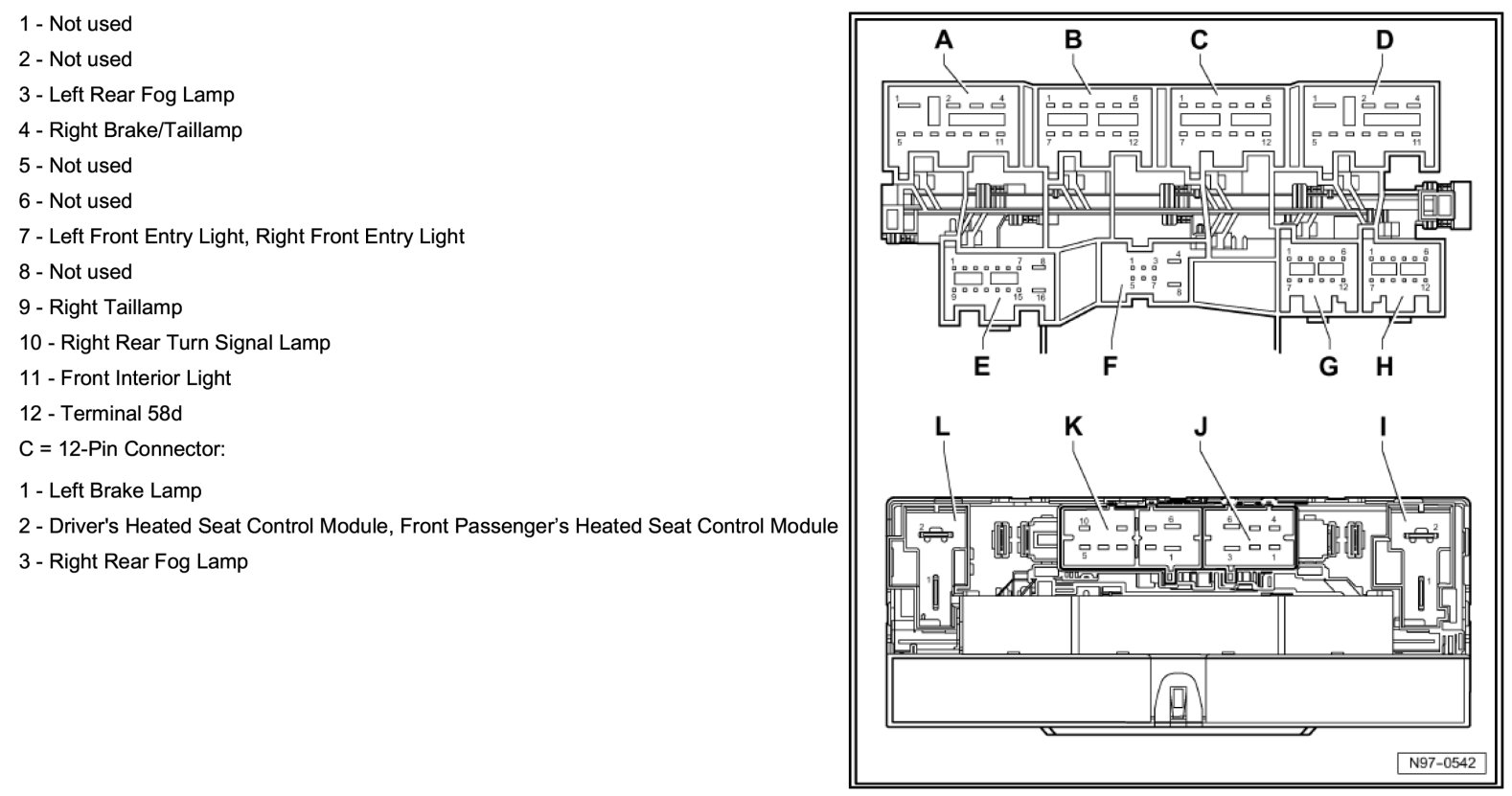

Pin Arrangements Part 5:

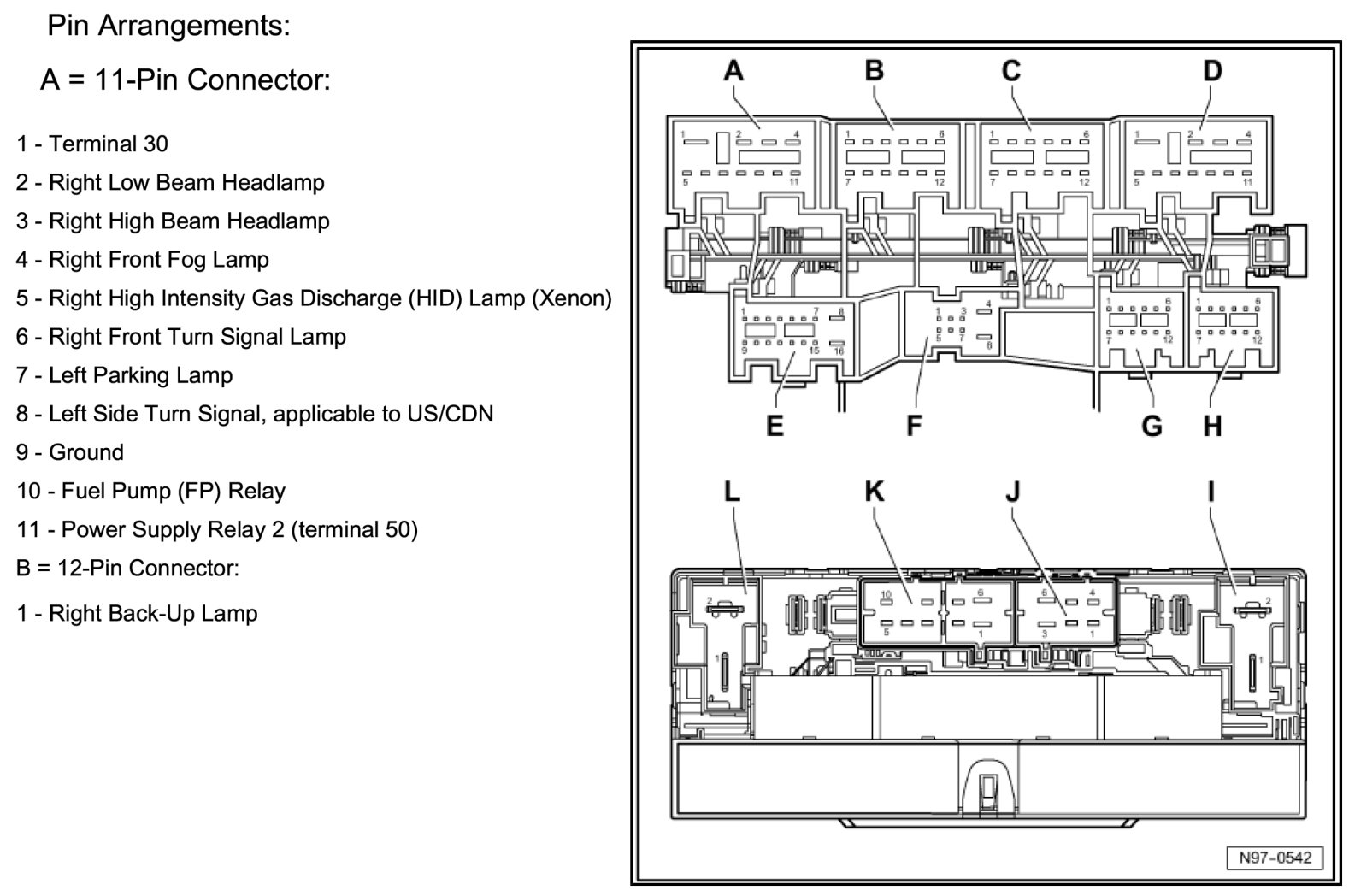

Pin Arrangements Part 6:

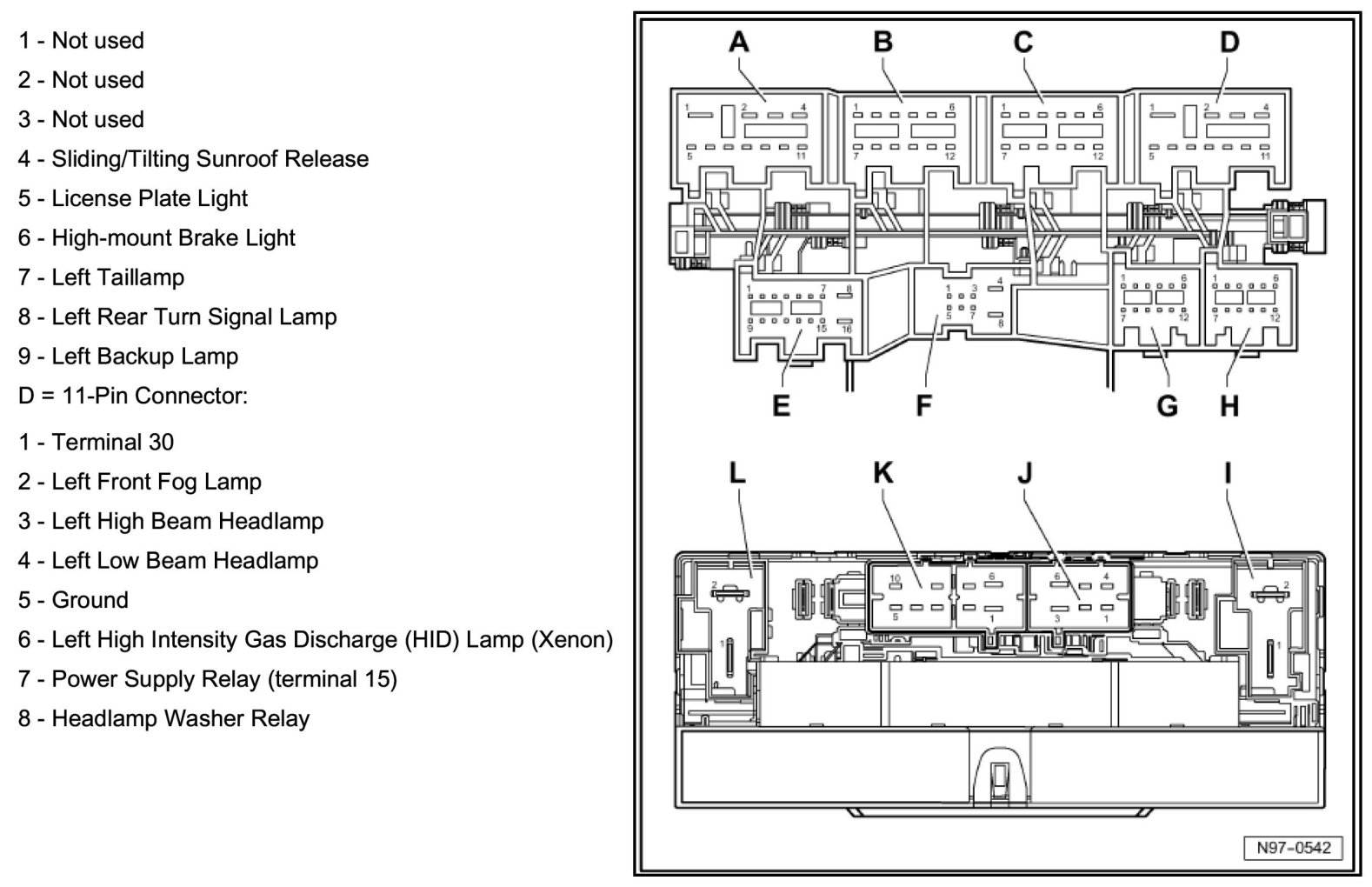

Pin Arrangements Part 7:

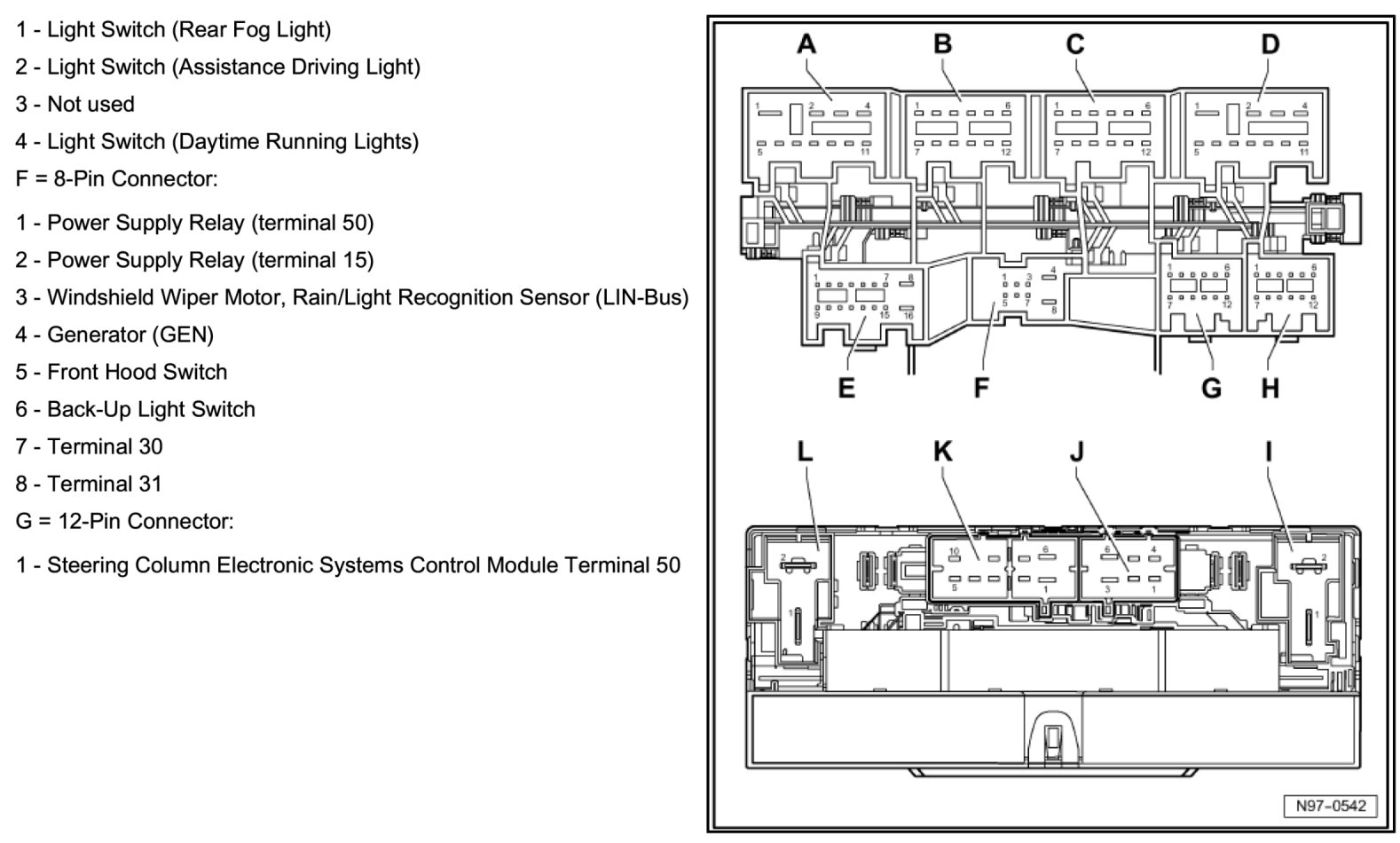

Pin Arrangements Part 8:
