Motronic Control Module J220, Engine Control Module J263

Motronic Control Module J220, Engine Control Module J623:

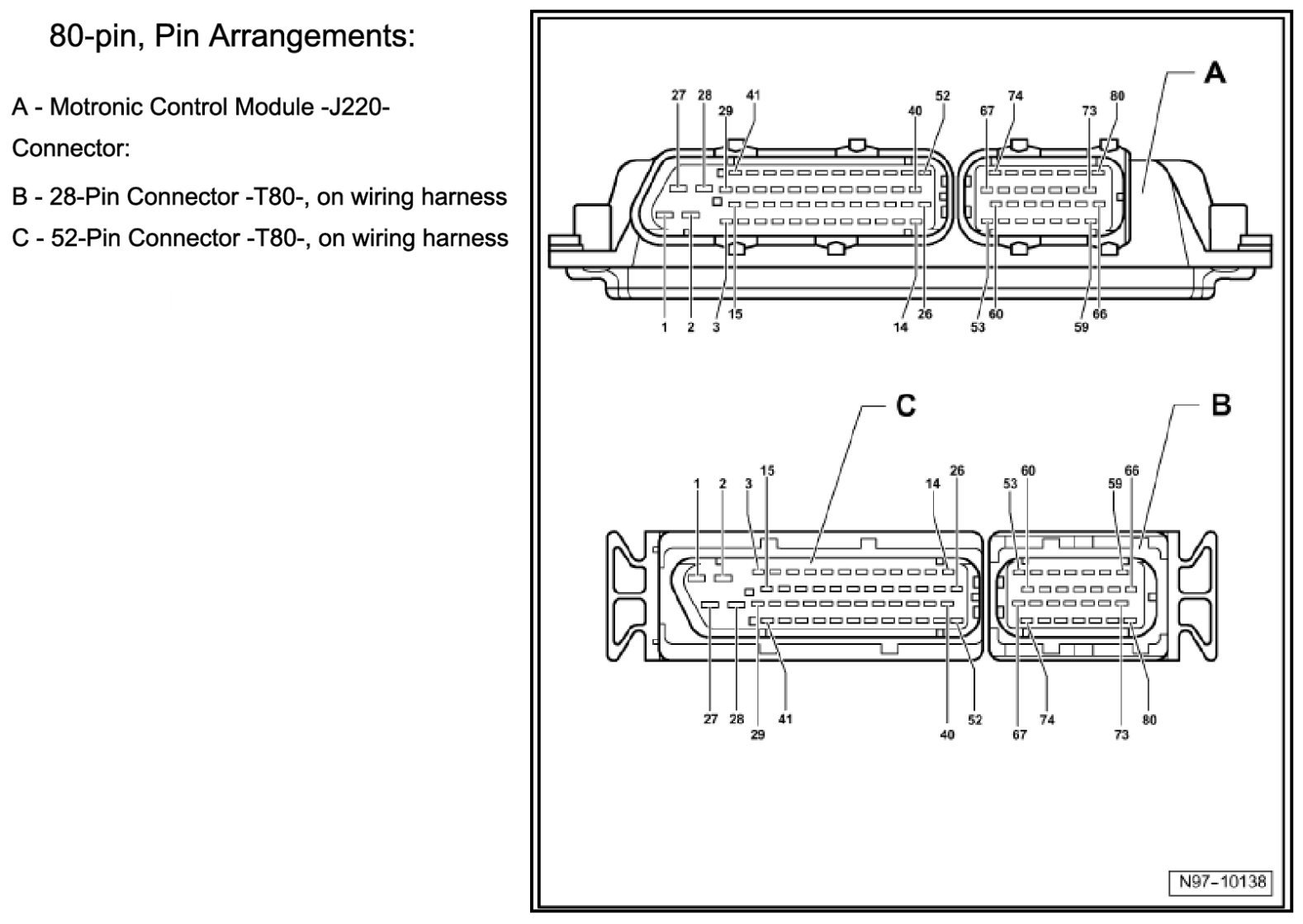

80-pin, Pin Arrangements:

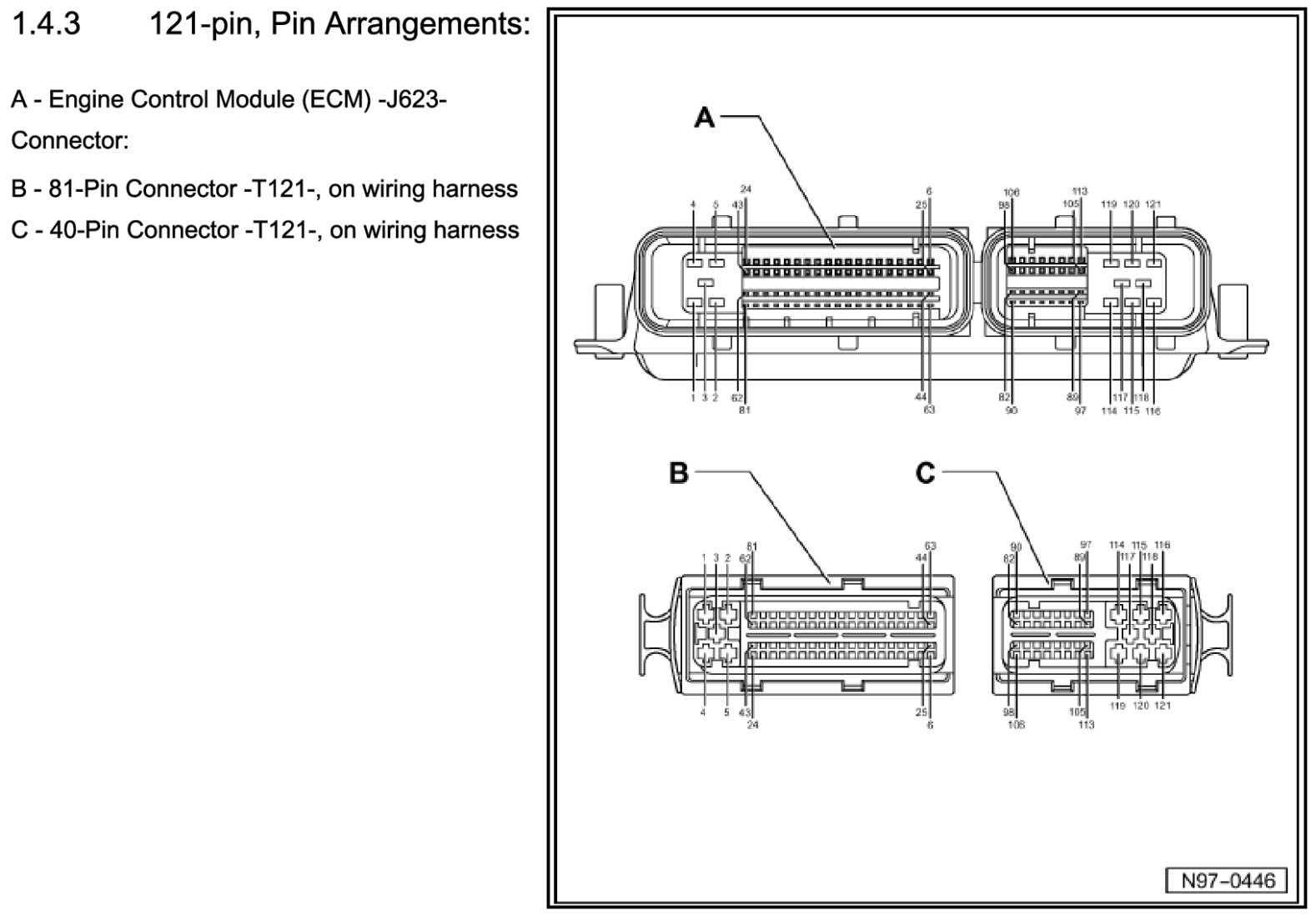

121-pin, Pin Arrangements:

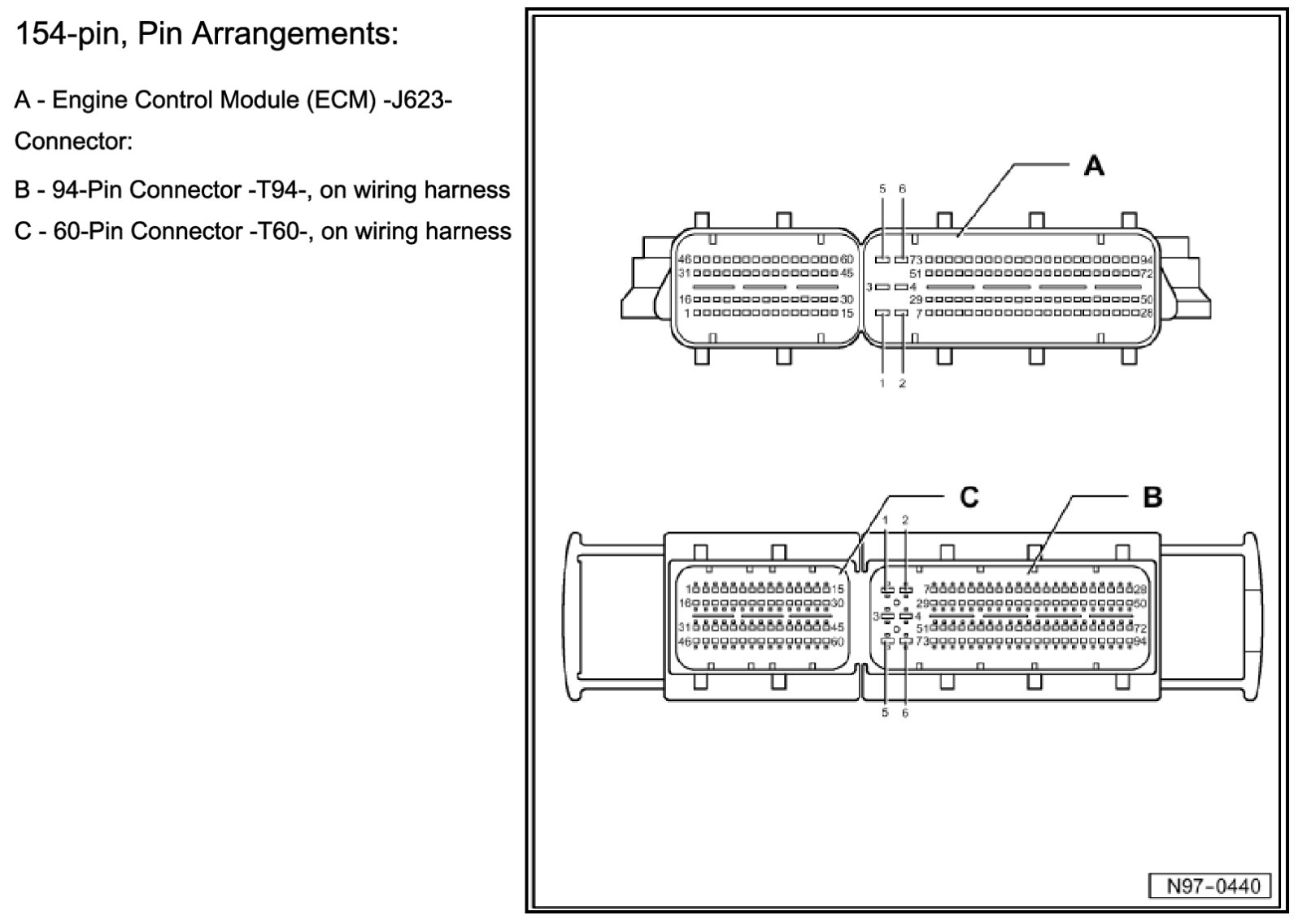

154-pin, Pin Arrangements:
