ABS/EDL Control Module J104

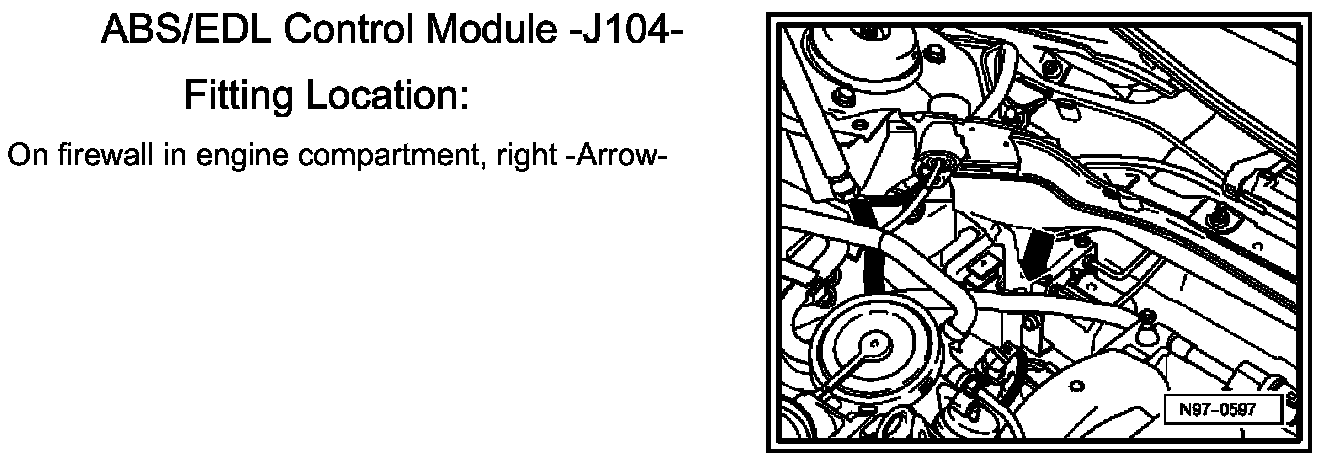

ABS/EDL Control Module J104:

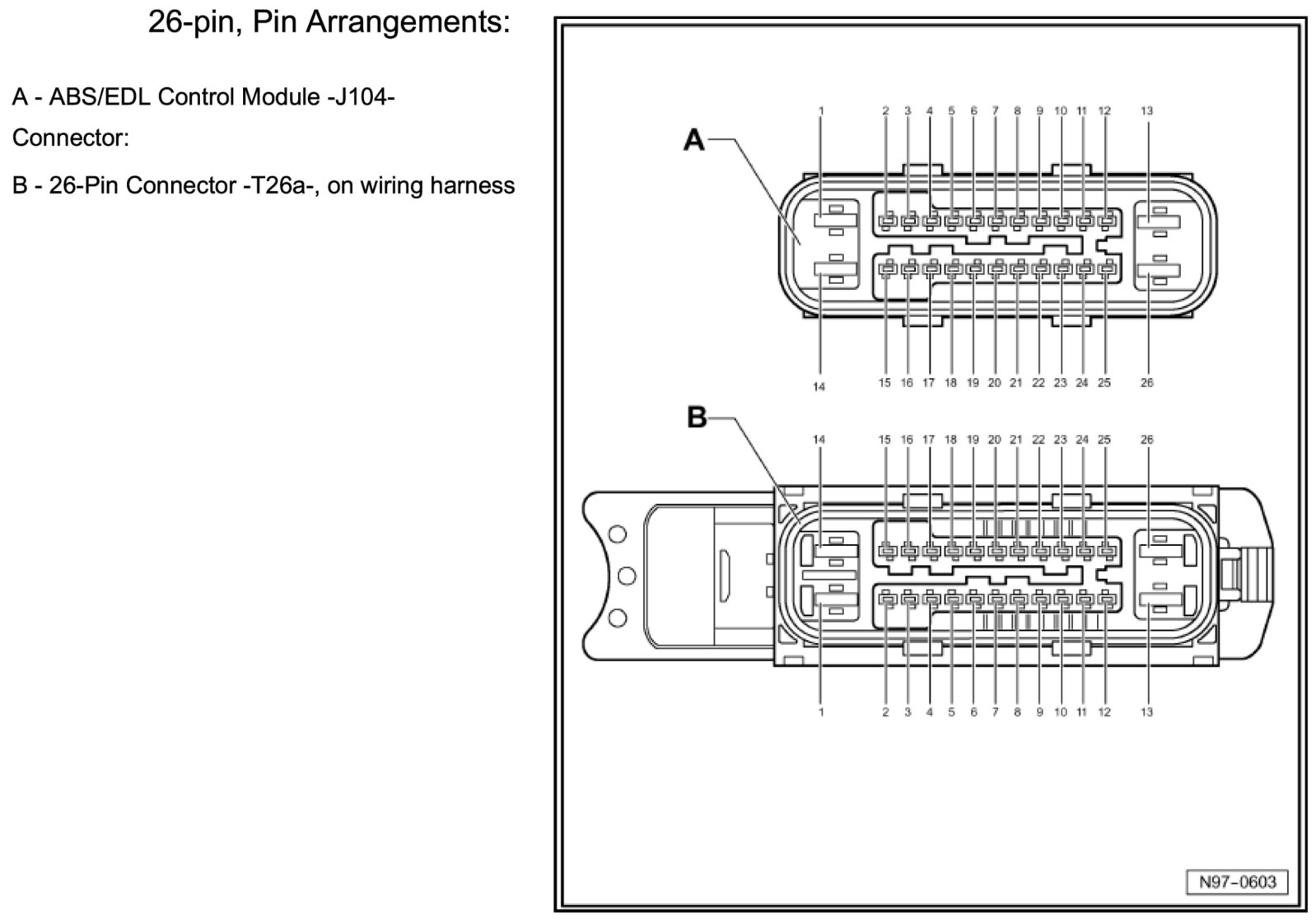

26-pin, Pin Arrangements:

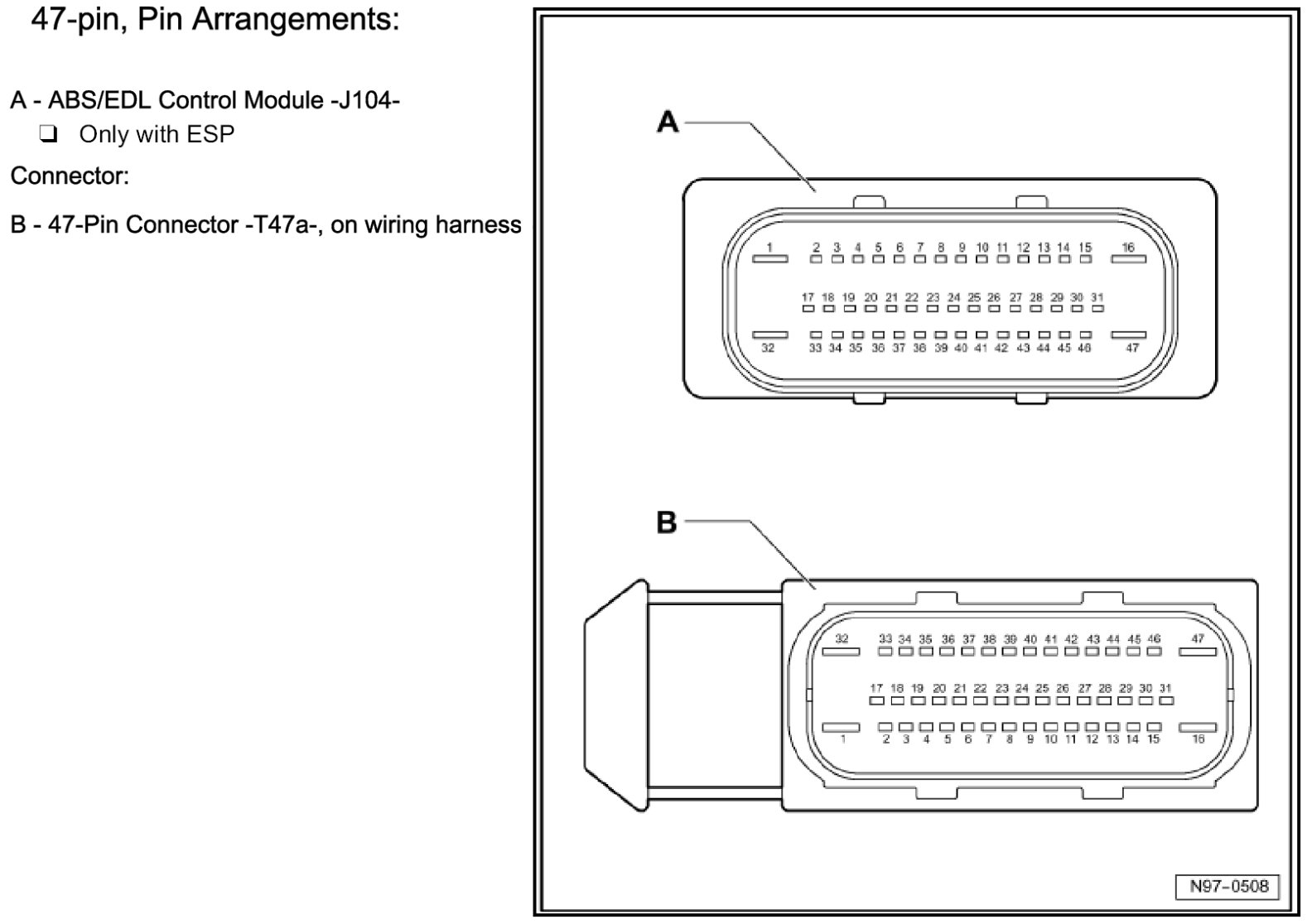

47-pin, Pin Arrangements:
