Airbag Control Module -J234-
Control modules in front part of vehicle
Airbag Control Module -J234-

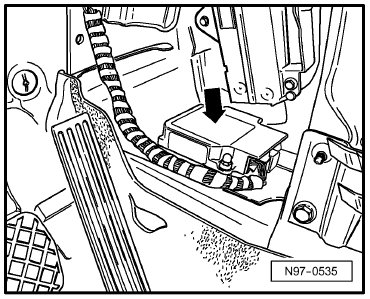

Component Location:
Below center console -Arrow-

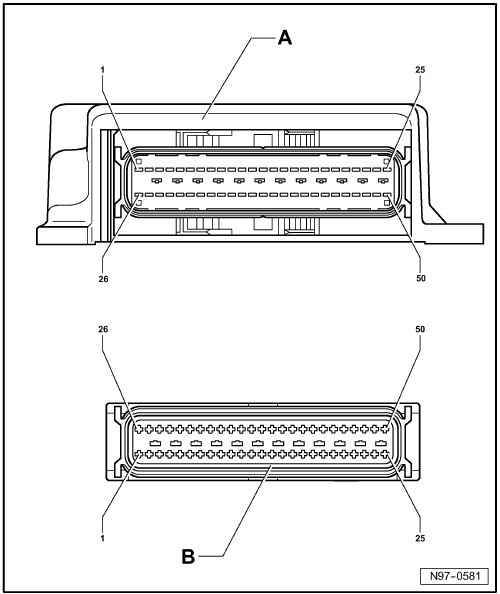

Pin Arrangements:
A - Airbag Control Module -J234-
Connector:
B - 50-Pin Connector -T50-, on wiring harness
