Rear Axle Camber, Adjusting

Rear Axle Camber, Adjusting

Special tools, testers and auxiliary items required

• Shock Absorber Set (T10001)

• Insert Tool 18 mm (T10179)

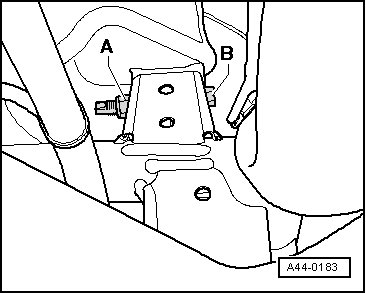

- Loosen nut - A - of threaded connection of upper transverse link at subframe.

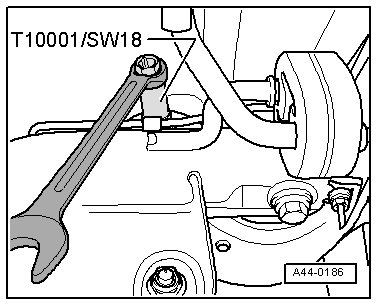

- Set camber by turning eccentric bolt - B - using (T10001).





• The maximum adjustment range is 90° to left or right of center position.

- Tighten nut - A -.

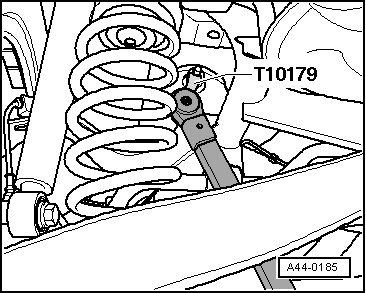

- To do so, use (T10179).





- After tightening the nut - A -, check the camber value again.

Tightening Specifications
