Splash Guard: Service and Repair

Noise Insulation Assembly Overview

Special tools, testers and auxiliary items required

- Torque wrench 2 to 10 Nm V.A.G 1783

NOTE: Slight changes may have to be made to removal and installation procedures, depending upon engine installed in vehicle.

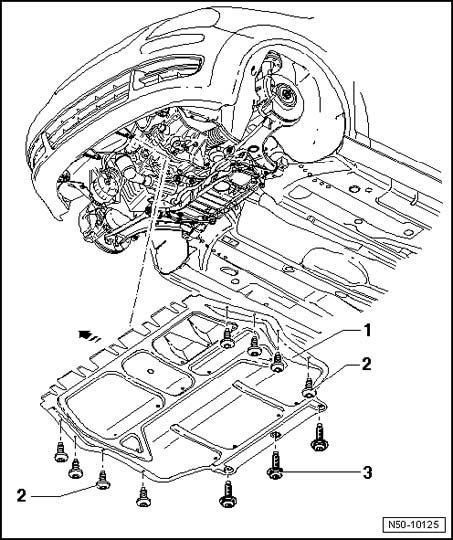

1 - Noise Insulation
- - Arrow - points in direction of travel.

- Removing:
- Remove bolts - 2 - and - 3 -.

2 - Bolt
- Qty. 8
- 2 Nm

3 - Bolt
- Qty. 3
- 6 Nm
