Communications Control Module: Service and Repair

Telephone

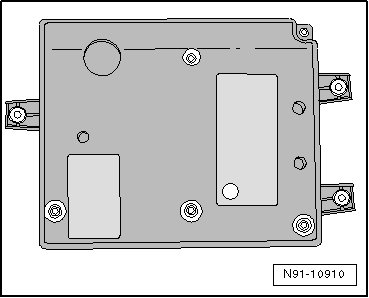

Telephone Operating Electronics Control Module, Rabbit Sedan and Golf Plus from 06.06





• The telephone operating electronics control module is installed under the front right seat.

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Slide passenger seat into rear end position.

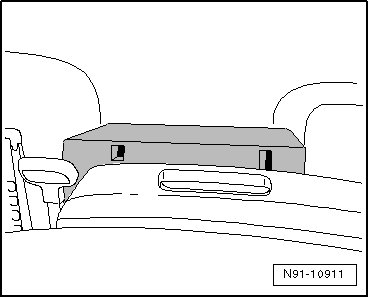

- Unclip cover.

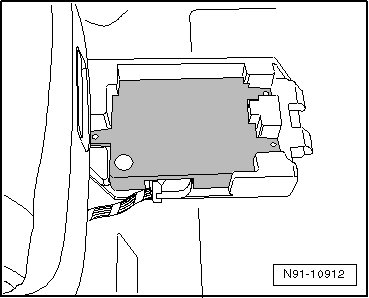

- Disconnect connector and remove control module from bracket.





Installing

Install in reverse order of removal.
