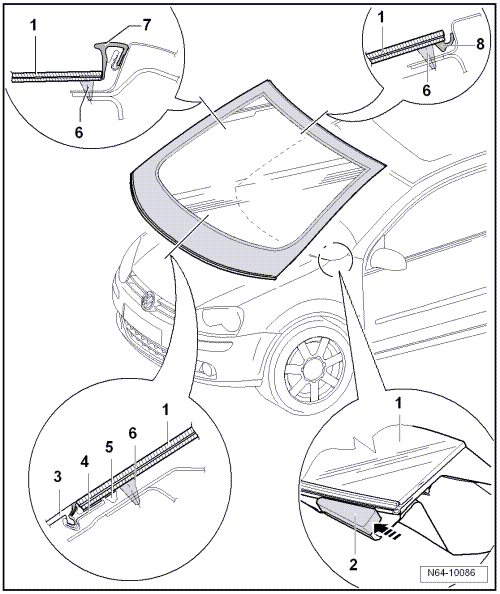

Windshield Assembly Overview
- Windshield
- Removing and Installing WINDSHIELD
- Window adjuster
- 443 845 631 A
- Plenum chamber cover
- Must only be pulled out of binding profile by hand.
- Removing and installing PLENUM CHAMBER COVER ASSEMBLY OVERVIEW
- Binding profile
- Is part of windshield.
- Spacer
- Is part of windshield.
- PUR adhesive sealant
- Bead cross section: width = 6.5 mm, height = 10 mm (including excess material on the window glass and window flange)
- Minimum Curing Time MINIMUM CURING TIME
- Drip rail
- Removing and installing DRIP RAIL
- Sealing lip
- If sealing lip is damaged when cut out, a new windshield must be installed.
