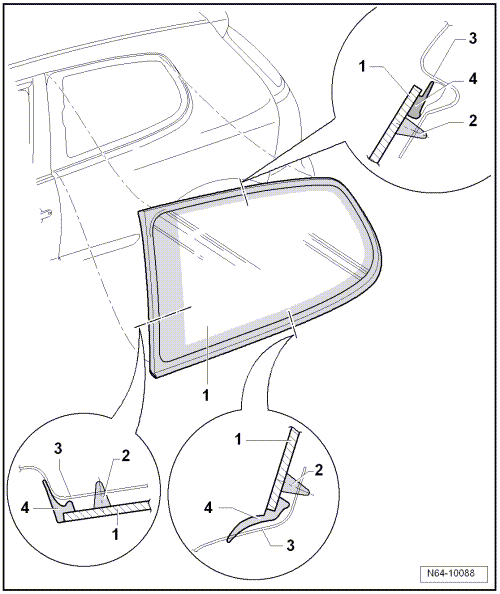

Rear Side Window Assembly Overview
- Side window
- Removing and Installing side window REAR SIDE WINDOW
- PUR adhesive sealant
- Bead cross section: Width = 6.5 mm, height = 10 mm (including residual material on window glass and window flange).
- Minimum Curing Time MINIMUM CURING TIME
- Window flange
- Seal with spacer
- Component part of side window.
