Front Door Window, Adjusting

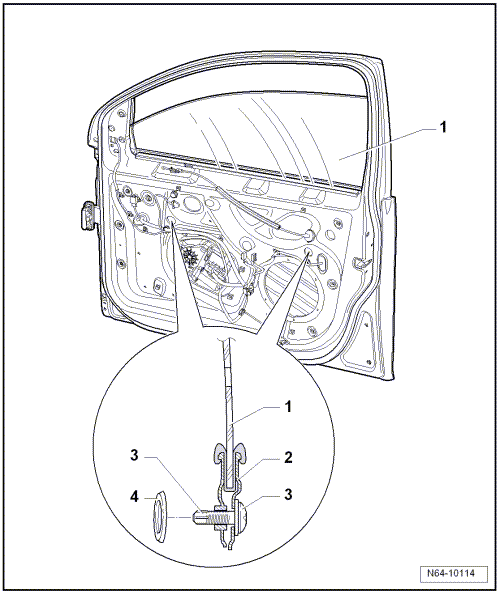

Fig 1: Door Window, Adjusting

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove front door trim Removal and Installation .

-- Pry out cover caps -4-.

-- Lower door window -1- until locking screws -3- for mount -2- are accessible.

-- Loosen bolts -3- (do not remove) from inside by turning toward right and press apart clamping brackets.

-- Press door window -1- using light pressure into clamping brackets -direction of arrow- and align door window to rear window guide without exerting pressure.

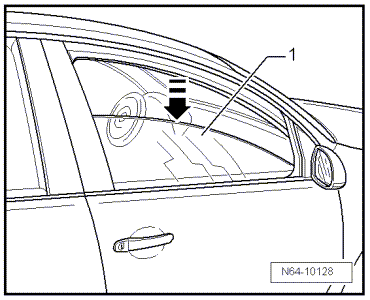

Fig 2: Pressing Door Window Using Light Pressure Into Clamping Brackets

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- While doing this, make sure that door window -1- stands parallel to window guide.

-- Tighten clamping brackets with screws -3- from inside by turning toward left.

Bolt tightening specification: 8 Nm.

• Then perform function test.

Further installation is in reverse order of removal.
