Front Door Window Guide Assembly Overview

NOTE:

The description applies to the right side. The left side is similar

For clarity, outer door plate is not depicted in the illustration.

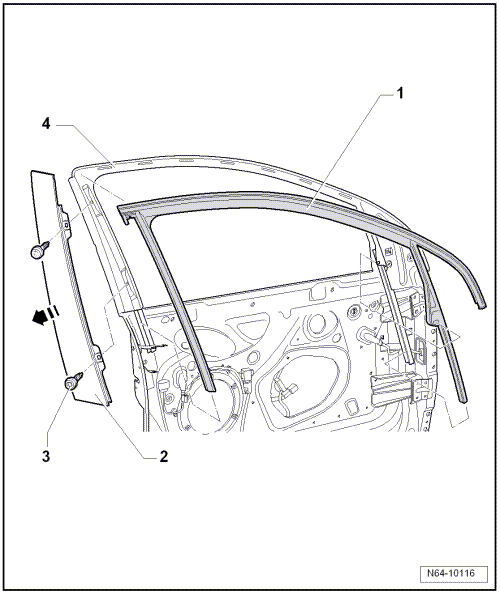

Fig 1: Window Guide, Assembly Overview
GWWN64-10116Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Window guide
  2. Trim
  3. Bolt
    • Qty. 2
    • 2 Nm
  4. Window frame at inner door part
