Procedures

B+ Cable Mount on Generator

CAUTION!
If the B+ wire is not tightened to the specification, the following may occur:

• Battery will not be completely charged.

• The complete electrical/electronics systems may fail (disabled vehicle).

• Fire hazard due to arcing.

• Damage to electronic components and control modules caused by excessive voltage.

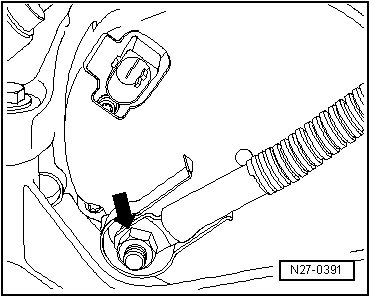

- The tightening torque for the B+ wire nut - arrow - can be found in => [ Fastener Tightening Specifications, Generator, All Vehicles ] Fastener Tightening Specifications, Generator, All Vehicles.
