Fastener Tightening Specifications

Fastener Tightening Specifications








Accessory Bracket Bolt Tightening Sequence and Specification
- First tighten aligning bolts - 2 and 4 - hand tight.
- Then tighten bolts - 1, 3 and 5 - hand tight.
- Now tighten all bolts to a tightening specifications of 23 Nm in a diagonal sequence.

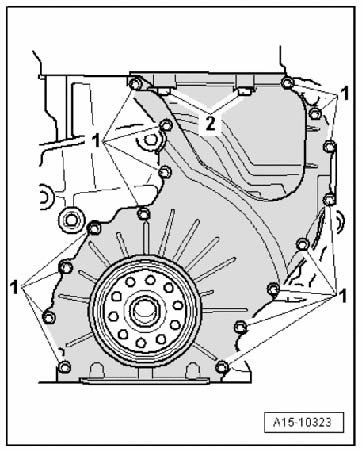

Sealing Flange, Transmission Side, Bolt Tightening Sequence and Specification
- Tighten bolts in 3 stages as follows:

A - Tighten the bolts - 1 - to 5 Nm.
B - Tighten the bolts - 2 - to 23 Nm.
C - Tighten the bolts - 1 - to 10 Nm.
